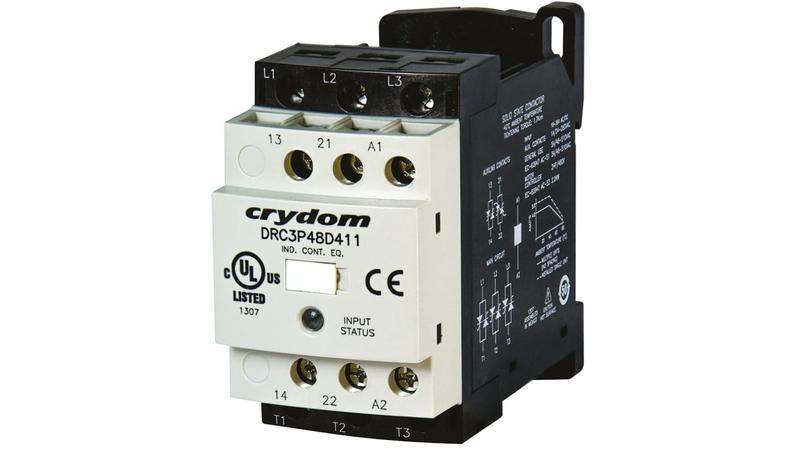

DRC3P48D400R2 Sensata / Crydom Solid State Contactor, 18 V ac → 30 V ac, 18 V dc → 30 V dc Control, 12.5mA Input, 7.6A

Crydom DRC Series Solid State Contactors_x000D_ Crydom DRC Series Solid State Contactors are intended for frequently switching on and off three phase loads up to 5 HP. They are available in both contactor versions DRC3P and reversing contactor versions DRC3R._x000D_ DRC3P are available in either instantaneous turn-on (for Motor Control) or zero voltage turn-on (for Resistive Loads)._x000D_ DRC3R include an interlock control that allows only off, forward and reverse operation in a safe mode: they switch_x000D_ instantaneously upon application of the control voltage and when an instantaneous change of direction is commanded they will delay the direction change by 100m/sec in order to prevent simultaneous forward and reverse operations._x000D_ This unique solid state contactor can start/stop a 3 Phase AC Motor at a maximum switching frequency of 9000 cycles/hour._x000D_ 7.6 Amp Motor Controller rated Solid State Contactor_x000D_ Load voltage range up to 530 VAC_x000D_ Fits standard 35 mm DIN rail_x000D_ LED input status indicator_x000D_ AC or DC control_x000D_ Zero crossing (resistive loads) or instantaneous turn-on (inductive loads) output_x000D_ Built in Overvoltage Protection_x000D_ Ultra-efficient thermal management design (Patented)_x000D_ C-UL-US Listed, IEC Rated, CE & RoHS Compliant, Horsepower Rated_x000D_ Embedded auxiliary contacts_x000D_ DRC3R has reversing control (DRC3R includes On/Off and Forward/Reverse control in a compact 45 mm package)_x000D_ Output terminals designed for an easy connection to multiple motor connections in parallel for a total up to 5 HP @ 480 Vac_x000D_ Very low input control current_x000D_ UL Listed, IEC60947-2 standard package_x000D_ Note_x000D_ The reversing option has dual control inputs._x000D_ Solid State Contactors
