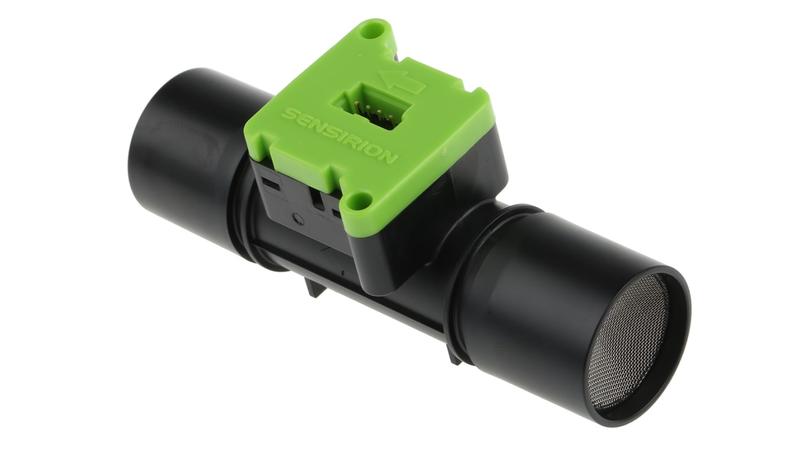

SFM3000-200C Sensirion SFM3000 Series Low Pressure Drop Flow Meter for Gas, -200 slm Min, 200 slm Max

Sensirion Flowmeter_x000D_ The Sensirion SFM3000 series low-pressure drop flowmeter measures a gas flow rate of -200slm to 200slm (bidirectional). This is a low-pressure drop, the digital tool provides accurate measurements of air and other non-aggressive gases. It is designed for high-volume applications. The sensor is based on Sensirion patented CMOSens sensor technology that combines the sensor element, signal processing and digital calibration on a single microchip. All measurement results are internally linearized and temperature compensated. The very low-pressure drop through the flow body of the sensor makes it ideal for use in demanding situations such as laboratory use, medical ventilation and respiratory applications. It has an operating supply of 5V._x000D_ Note:_x000D_ The SFM3000 flowmeter is available with or without a protective cap/cover. SFM3000-200C with cap/cover_x000D_ ._x000D_ Features and Benefits_x000D_ Pipe diameter range is 22mm_x000D_ Connection type is :2-wire I2C_x000D_ Maximum operating pressure is 1.3bar_x000D_ Maximum operating temperature is 80°C_x000D_ 2-wire I2C digital interface_x000D_ Low pressure drop_x000D_ Typical accuracy ±1.5% of measured value_x000D_ Fast 0.5 millisecond update time_x000D_ Zero offset, no drift_x000D_ Applications_x000D_ Process automation_x000D_ Burner control_x000D_ Fuel cell control_x000D_ Spectroscopy_x000D_ Environment monitoring
