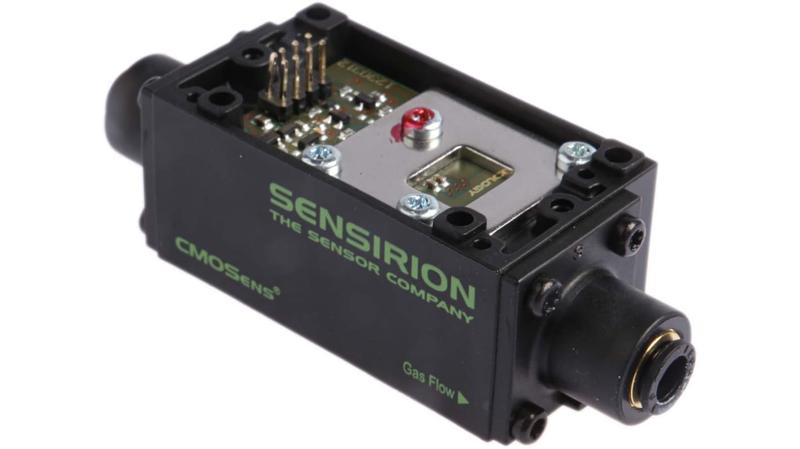

SFM4100 Air Sensirion SFM4100 Series Digital Mass Flow Meter for Gas, 0 slm Min, 20 slm Max

Sensirion Flowmeter_x000D_ The Sensirion SFM4100 series low-pressure drop flowmeter measures a gas flow rate of 0slm to 20slm. This low-pressure drop, the digital tool is based on Sensirion’s patented CMOSens sensor technology that combines the sensor element, signal processing and digital calibration circuitry on a single microchip. The Sensirion SFM4100 series is designed to measure the flow rate of air and non-aggressive gases. It is intended for high volume OEM applications. The device has an excellent accuracy over a large dynamic range and the flow signal is internally linearized and temperature compensated. It has an operating supply of 5VDC to 9VDC._x000D_ Features and Benefits_x000D_ Pipe diameter range is 15.35 mm_x000D_ Connection type is :2-wire I2C_x000D_ Maximum operating pressure is 10bar_x000D_ Maximum operating temperature is 80°C_x000D_ Typical accuracy ±3% of measured value_x000D_ Operating pressure 0 to 6 bar gauge_x000D_ Flow connections Legris CarStick 6mm_x000D_ Applications_x000D_ Medical (e. G. respiratory care, anaesthesia)_x000D_ Analytical instruments_x000D_ Leak testing_x000D_ Process automation
