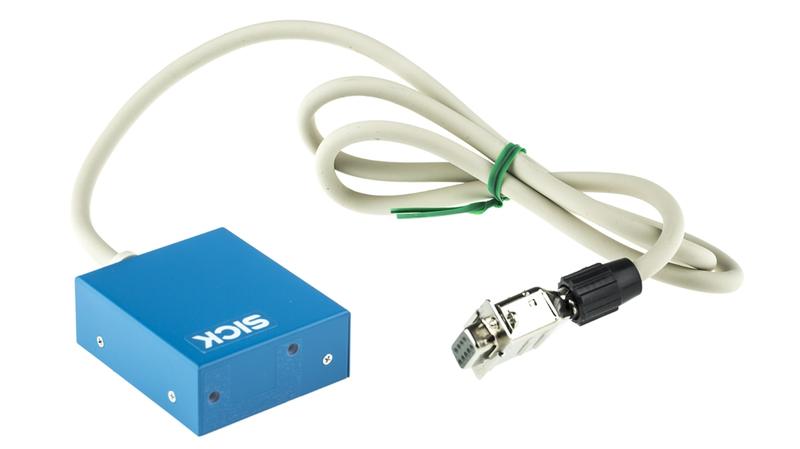

CLP100-0010 Sick 300 mA Fixed Cable Bar code reader, 1200 → 19200Bd, 5 V dc

CLP 100 Fixed Reader_x000D_ CCD scanner. Compact, metal housing design suitable for incorporation where space is limited. Available in 2 styles, front and side window (front window illustrated).,Typical applications include clinical sampling, automatic diagnostic, ticket and labelling machines._x000D_ Supply voltage 5Vdc_x000D_ Operating current 300mA_x000D_ 20 to 70mm reading distance_x000D_ 80mm reading width at 40mm distance_x000D_ 0.125mm resolution_x000D_ Fast scanning and decoding at 500Hz_x000D_ Integrated decoder with serial RS232 Interface (9-pin D-type female connector)_x000D_ CCD technology based optics_x000D_ Integrated programmable digital output_x000D_ 0 to 100000 lux ambient light compatibility_x000D_ Easy and friendly configuration using Windows-based Graphic User Interface_x000D_ Dimensions: 55 x 55 x 20mm (HxWxD) - side window; 55 x 47 x 20mm (HxWxD) - front window_x000D_ Caution_x000D_ Laser radiation is harmful to the human eye and under no circumstances should the laser beam be viewed directly or via optical instruments.
