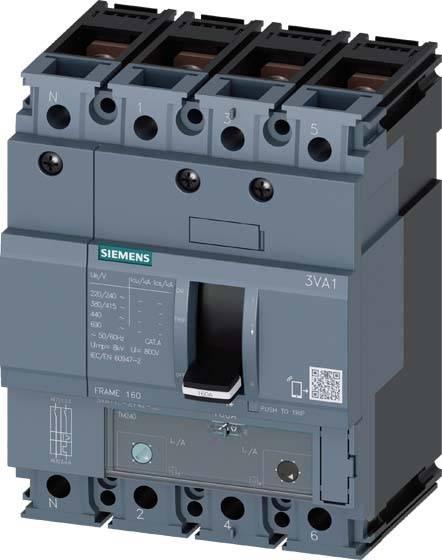

| Type | 3VA1120-5EF42-0AA0 |
| Amperage adjustment range (min.) | 14 |
| Amperage adjustment range (max.) | 20 |
| Adjustment range (amperage) | 14 - 20 A |
| No. of pins | 4-pin |
| Switching voltage (max.) | 690 |
| Mounting type | Fixed |
| Min. temperature | -25 |
| Max. temperature | +70 |
| Breaking capacity rating | M |
| OCR type | TM240 |
| Connection | Screws |
| IP rating | IP40 |
| Depth | 70 |
| Width | 101.6 |
| Height | 130 |
| Dim | (W x H x D) 101.6 x 130 x 70 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 20 |
| Number of poles | 4 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 |
| Product type | Circuit breaker |
