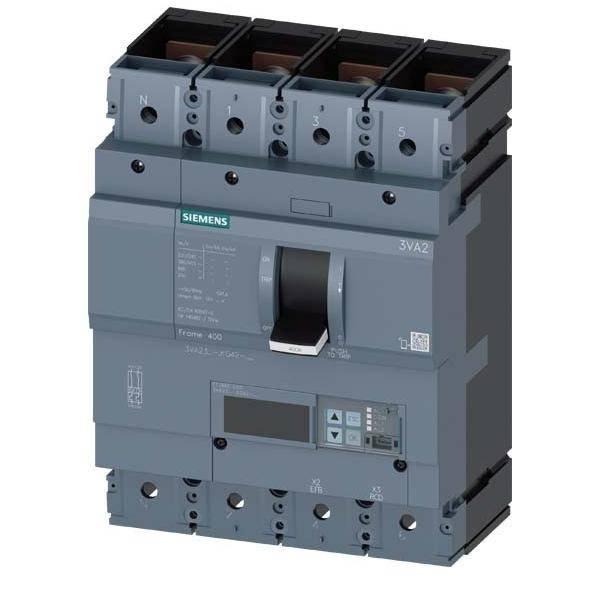

| Type | 3VA2325-5KQ42-0AA0 |
| Amperage adjustment range (min.) | 100 |
| Amperage adjustment range (max.) | 250 |
| Adjustment range (amperage) | 100 - 250 A |
| No. of pins | 4-pin |
| Switching voltage (max.) | 690 |
| Mounting type | Fixed |
| Min. temperature | -25 |
| Max. temperature | +70 |
| Breaking capacity rating | M |
| Connection | Screws |
| IP rating | IP40 |
| Depth | 110 |
| Width | 184 |
| Height | 248 |
| Dim | (W x H x D) 184 x 248 x 110 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 250 |
| Number of poles | 4 |
| Overload release current setting | 100-250 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | 690-690 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 |
| Adjustment range short-term delayed short-circuit release | 150-2500 |
| Adjustment range undelayed short-circuit release | 375-3000 |
| Product type | Circuit breaker |
