| Type | 3VA2340-6JQ42-0AA0 |
| Amperage adjustment range (min.) | 160 |
| Amperage adjustment range (max.) | 400 |
| Adjustment range (amperage) | 160 - 400 A |
| No. of pins | 4-pin |
| Switching voltage (max.) | 690 |
| Mounting type | Fixed |
| Min. temperature | -25 |
| Max. temperature | +70 |
| Breaking capacity rating | H |
| OCR type | ETU560 |
| Connection | Screws |
| IP rating | IP40 |
| Depth | 110 |
| Width | 184 |
| Height | 248 |

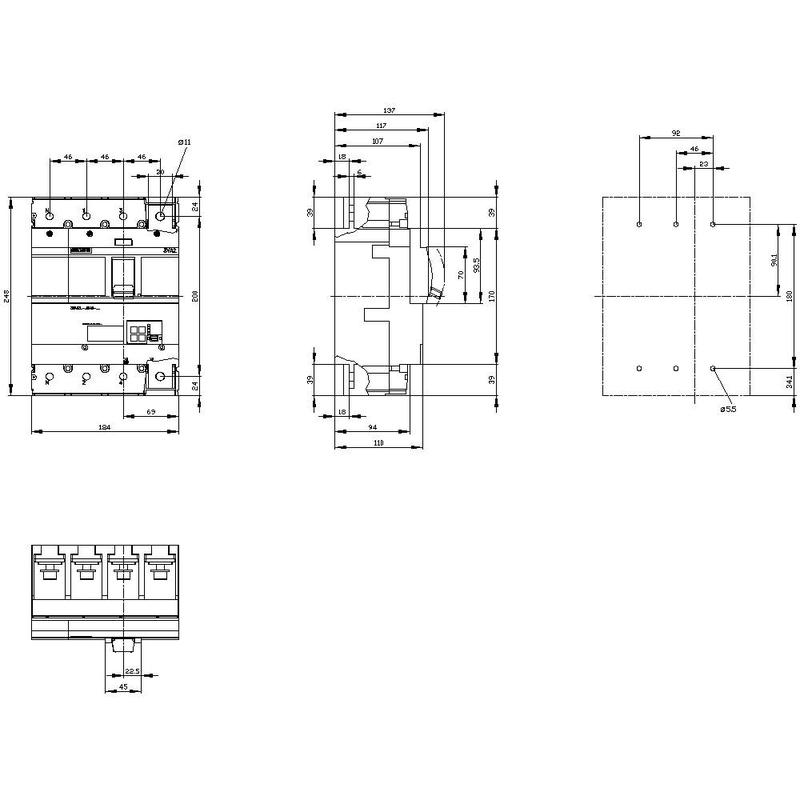

| Dim | (W x H x D) 184 x 248 x 110 mm |
| Content | 1 |
| RoHS-compliant | Yes |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 400 |
| Number of poles | 4 |
| Overload release current setting | 160-400 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | 690-690 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 85 |
| Adjustment range short-term delayed short-circuit release | 240-4000 |
| Adjustment range undelayed short-circuit release | 600-4000 |
| Product type | Circuit breaker |
