| Input voltage | 380 |
| Output rating (max.) | 3.0 |
| Max. frequency | 550 |
| Min. frequency | 0 |
| Frequency range | 0 Hz - 550 Hz |
| Nominal current | 7.3 |
| Depth | 164.5 |
| Height | 160 |
| Width | 140 |
| IP rating | IP20 |

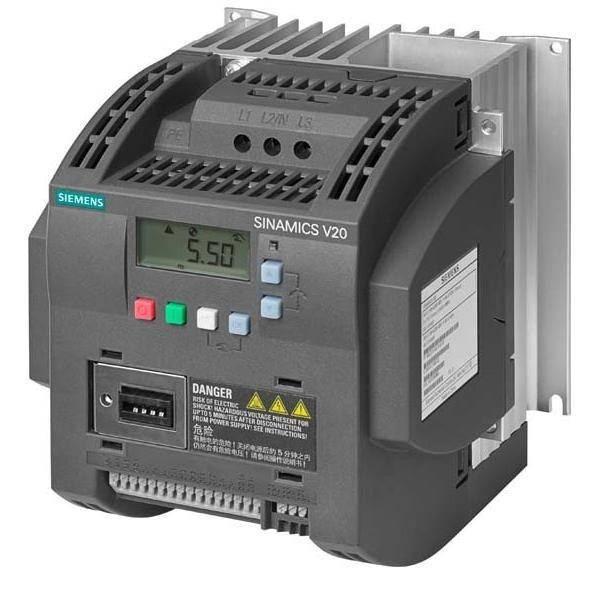

| Type | 6SL3210-5BE23-0CV0 |
| Dim | (W x H x D) 140 x 160 x 164.5 mm |
| Manufacturer part # | 6SL32105BE230CV0 |
| Weight | 2.12 |
| Width | 140 |
| Height | 160 |
| Depth | 164.5 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| Number of interfaces PROFINET | 0 |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 3 |
| Max. output at quadratic load at rated output voltage | 3 |
| Relative symmetric net voltage tolerance | -15 |
| Relative symmetric net frequency tolerance | -5 |
| Max. output voltage | 480 |
| Nominal output current I2N | 7.3 |
| Product type | Frequency inverter |
