| Input voltage | 400 |
| Output rating (max.) | 5.5 |
| Max. frequency | 599 |
| Min. frequency | 0 |
| Network | 3-phase |
| Frequency range | 0 Hz - 599 Hz |
| Height | 140 |
| Width | 184 |
| IP rating | IP20 |
| Type | 6SL3210-5BE25-5CV0 |
| Filter class | C3 |
| Dim | (L x W x H) 169 x 184 x 140 mm |
| Manufacturer part # | 6SL32105BE255CV0 |
| Filter class/protection level | C3 according to EN 61800-3 |
| Weight | 2.6 |
| Length | 169 |
| Output voltage | 400/480 |
| Width | 184 |
| Height | 182 |
| Depth | 169 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| Number of interfaces PROFINET | 0 |
| Max. output frequency | 550 |
| Max. output at linear load at rated output voltage | 5.5 |
| Max. output at quadratic load at rated output voltage | 5.5 |
| Relative symmetric net voltage tolerance | -15 |
| Relative symmetric net frequency tolerance | -5 |
| Max. output voltage | 480 |
| Nominal output current I2N | 12.5 |

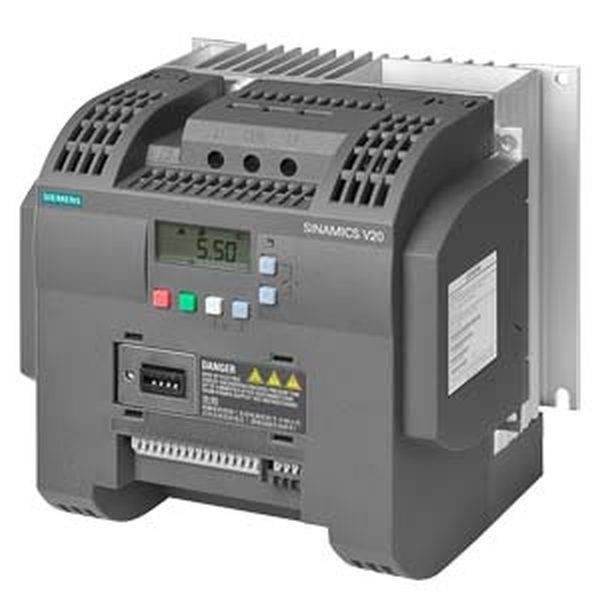

| Product type | Frequency inverter |
