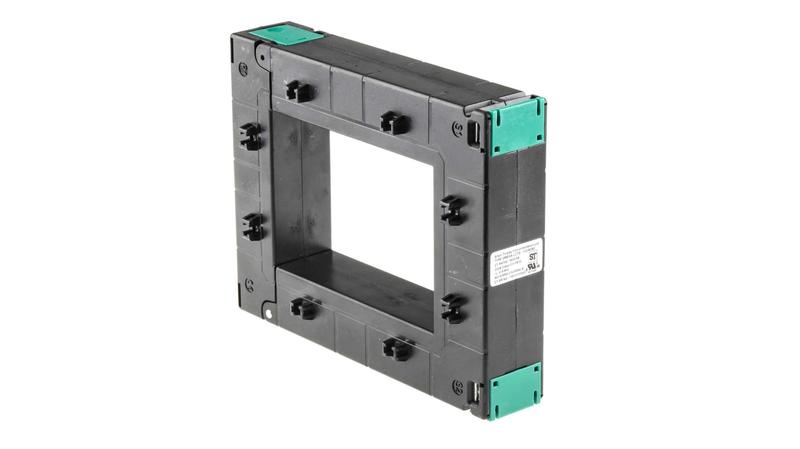

XS03-435145S 000000 Sifam Tinsley Omega10 Series Clip Fit Current Transformer, 1600:5, 120 x 80mm Bore

Sifam Tinsley Split-Core Current Transformer_x000D_ The Sifam Tinsley Omega 10 series split-core current transformer is used to measure current without the need to break the conductor, thereby reducing installation and commissioning time. It has a system voltage of 720V and test voltage of 3kV for 1 minute._x000D_ Features and Benefits_x000D_ Clip fit_x000D_ Surface mount_x000D_ System frequency ranges between 50Hz and 60Hz_x000D_ Current ratio is 1600:5_x000D_ Overload withstand of 1.2 times rated current continuously_x000D_ Flame retardant grade enclosure_x000D_ Operation free installation_x000D_ Operating temperature ranges between 20⁰C and 70⁰C_x000D_ Applications_x000D_ Distribution systems_x000D_ Generator sets_x000D_ Control panels_x000D_ Overload protection_x000D_ Certifications_x000D_ IEC60044-1_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
