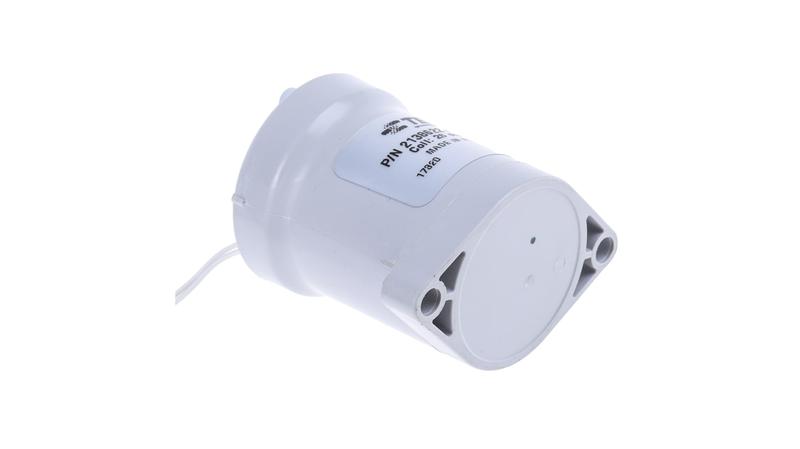

2138622-1 TE Connectivity AMP+ EVC 135 Contactor, 1 Pole, 135 A

TE Connectivity AMP+ Electric Vehicle Contactor_x000D_ The AMP+ high voltage contactor range from TE Connectivity are a hermetically sealed and intrinsically safe solution that will provide both fast and reliable switching of a high voltage battery to the vehicle systems found in both hybrid and electric vehicles. The AMP+ high voltage contactor 500-500L offers 900 VDC and 500 Amps continuous current carrying capabilities in a compact package Capable of 2000 Amp interrupt at 320 VDC, the 135 model offers 900Vdc and 135 Amps continuous current capacity. AMP+ high voltage contactors reliably provide current switching capability in harsh and explosive operating environments with no oxidation or contamination of contacts during long periods of non-operation._x000D_ • Hermetically sealed_x000D_ • 8kv (135) / 12kV (500) isolation_x000D_ • Gas filled inert contact chamber_x000D_ • Flying leads for coil connections_x000D_ • Coil voltage 12Vdc_x000D_ • Bottom mounting_x000D_ Versions Available_x000D_ 808-6771 – 135A, 900V dc (135) 1 million cycle Mechanical life_x000D_ 808-6774 – 500A, 450V dc (500) 500k cycle Mechanical Life_x000D_ 808-6778 – 500A, 900V dc (500) 500k cycles Mechanical Life_x000D_ Note_x000D_ Connection hardware included for 808-6774 , 808-6778. No connection hardware included for 808-6771 (M5 thread)_x000D_ Approvals_x000D_ RoHS_x000D_ TE Connectivity AMP+
