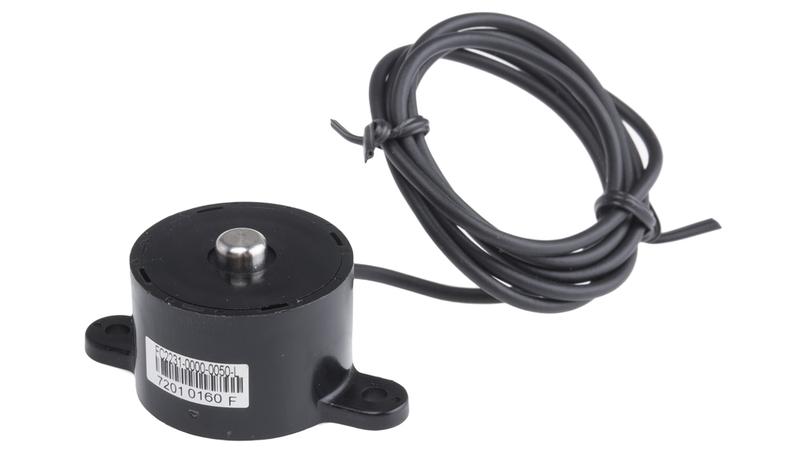

FC2231-0000-0050-L TE Connectivity Load Cell, 22.6kg Range, Compression Measure

TE Connectivity FC22 Series Compression Load Cells_x000D_ TE Connectivity’s MEAS FC22 series consists of robust load cells that act as medium compression force sensors. Thermally compensated for changes in zero and span regarding temperatures, FC22 load cells offer normalised zero and span for interchangeability. Utilising Microfused™ technology and removing the need for age-sensitive epoxies, the FC22 load cells have an essentially unlimited life cycle expectancy, superior resolution and high over-range capabilities when operated at low strains._x000D_ Suitable applications for these loads cells include variable force control, pumps, medical infusion pumps, load and compression sensing, contact sensing, robotics end-effectors, exercise machines, weighing and household appliances._x000D_ Interchangeable_x000D_ Compact size_x000D_ Unlimited cycle life expectancy_x000D_ High level of reliability_x000D_ Fast response time_x000D_ Reverse polarity protected
