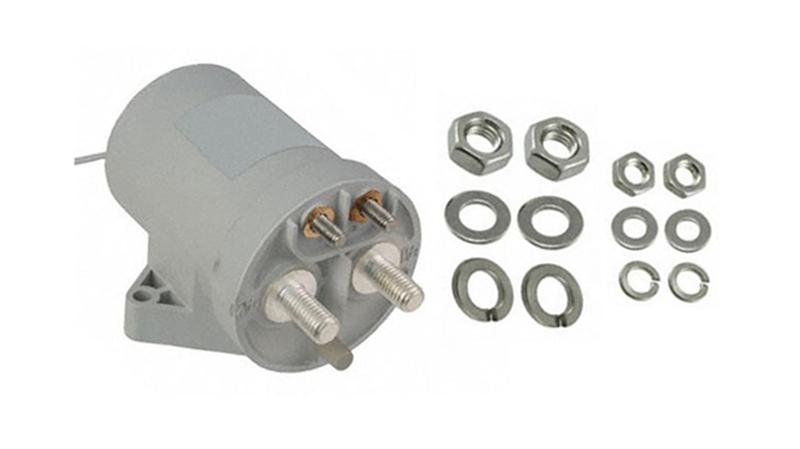

LEV200A4NAF 1618387-5 TE Connectivity LEV200 Contactor, 12 V dc Coil, 1 Pole, 500 A

TE Connectivity SPST-No Non-latching Relay_x000D_ The TE Connectivity LEV series Flange mount automotive non-latching relay has a contact configuration of SPNO. It is actuated with 12VDC coil voltage and 500mA switching current._x000D_ Features and Benefits_x000D_ 15in flying leads for coil connections_x000D_ 8kV isolation between open contacts permits use for high voltage and isolation carry_x000D_ Coil resistance is 11ohm_x000D_ Maximum voltage rating is 900VDC_x000D_ Optional auxiliary contact for easy monitoring of power contact position_x000D_ Terminal type is screw_x000D_ Bottom mount and Male 10mm x M8 Threaded Terminal_x000D_ Applications_x000D_ Automotive battery switching and backup_x000D_ Circuit protection_x000D_ Power/motor control circuit isolation_x000D_ Safety in industrial machinery_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
