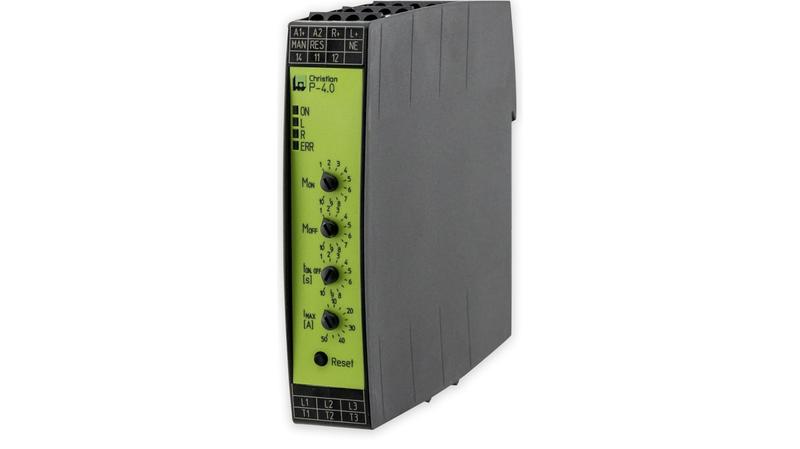

P-4.0/RL/OL Tele 4 kW @ 400 V ac Soft Start, 200 → 480 V ac, 3 Phase, IP20, IP40

To reverse 3 phase motors up to 550 W to 4 kW_x000D_ 2-phase soft start_x000D_ 4 potentiometer fur setting of starting torque, deceleration torque, soft start /-stop, over current limit or rated motor current_x000D_ 4 LEDs for status indication_x000D_ Reversing with relays without current, soft start, soft stop with thyristor_x000D_ Galvanic separated 24V-inputs for clockwise- and anticlockwise_x000D_ Reset button on front_x000D_ Connection facility for external reset button_x000D_ Relay indicator output for operation_x000D_ Galvanic separation between control circuit and power circuit_x000D_ Width: 22,5 mm_x000D_ Your Advantages_x000D_ Up to 6 function in one unit_x000D_ Reversing anticlockwise_x000D_ Reversing clockwise_x000D_ Soft start_x000D_ Soft stop_x000D_ Current monitoring or motor protection (optional)_x000D_ Galvanic separation via forcibly guided contacts_x000D_ contact distance min. 0.5 mm (optional)_x000D_ 80 % less space_x000D_ Simple and time-saving commissioning as well as user-friendly_x000D_ operation through setting via potentiometers on absolute scales_x000D_ Blocking protection_x000D_ Hybrid relay combines benefits of relay technology with_x000D_ non-wearing semiconductor technology_x000D_ High availability by_x000D_ Temperature monitoring of semiconductors_x000D_ High withstand voltage up to 1500 V_x000D_ Load free relay reversing function
