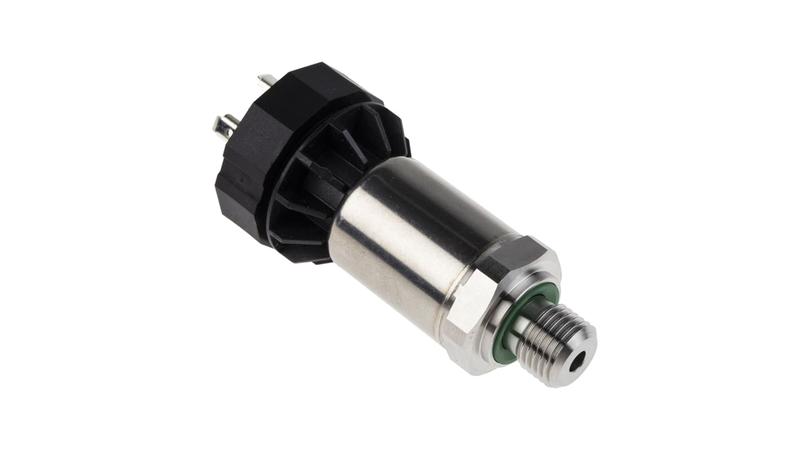

XMLP010BC11F Telemecanique Sensors Pressure Switch, 0bar Min, 10bar Max, Analogue Output

Telemecanique Pressure Sensor_x000D_ The Telemecanique sensors pressure sensor is an analogue thread mount type sensor. It integrates a ceramic pressure measuring cell. Ceramic technology has been used successfully for many years and offers a high level of sensitivity that is particularly suitable for measuring low pressures. Ceramic also provides good resistance to abrasive fluids. This pressure sensor is rated at less than 9bar or 100psi. The range of this sensor is Osisense XM. It has load short-circuit reverse polarity protection. This product content's weight is 0.106kg. The ambient air temperature for operation is between -30°C and 85°C. The ambient air temperature for storage is between -50°C and 100°C. An internal fluorocarbon rubber gasket provides the seal between the ceramic measuring cell and the AISI 316L stainless steel casing. XMLP pressure transmitters are rated greater than or equal to 9bar or 100 psi. These transmitters integrate a metal pressure measuring cell. This measuring cell is welded directly onto the AISI 316L stainless steel._x000D_ Features and Benefits_x000D_ • Accuracy ±0.5 (measurement) %,0.1%_x000D_ • Analogue output 0.5V to 4.5V_x000D_ • Electrical connection EN 175301-803-A 3-pin male connector_x000D_ • Housing material FPM, stainless steel 316L_x000D_ • Maximum current 7mA_x000D_ • Maximum pressure reading 10bar_x000D_ • Media measured air, fresh water, gas, hydraulic oil, refrigeration fluid, etc._x000D_ • Minimum pressure reading 0bar_x000D_ • Mounting type is thread mount_x000D_ • Response time2 ms_x000D_ • Supply voltage 5 VDC_x000D_ Applications_x000D_ • Air compressors_x000D_ • All pneumatic or hydraulic industrial systems_x000D_ • HVAC_x000D_ • Irrigation_x000D_ • Machine tools_x000D_ • Mobile cranes_x000D_ • Moulding machines_x000D_ • Railway_x000D_ • Stamping machines_x000D_ • Vacuum formers_x000D_ • Water pumping and treatment_x000D_ Certifications_x000D_ • CE certified_x000D_ • CULus_x000D_ • EAC_x000D_ • RCM_x000D_ . IP65 rated
