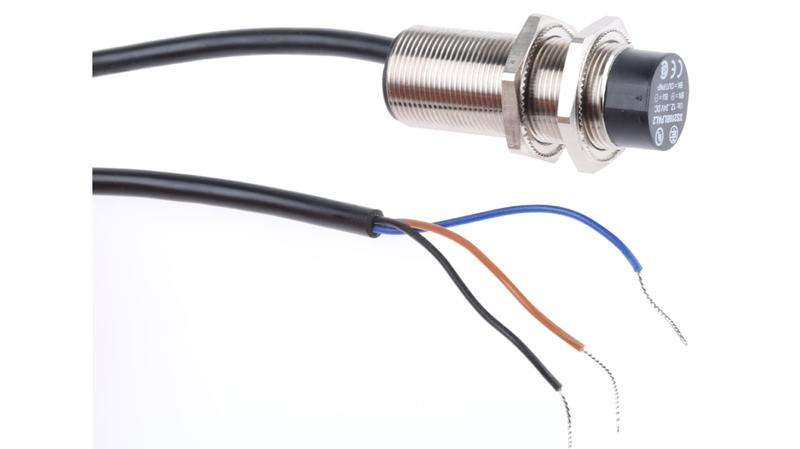

XS218BLPAL2 Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, PNP Output, 12 → 24 V

Telemecanique Inductive Sensors_x000D_ Introducing Telemecaniques XS218B range of M18 inductive proximity sensors which have been created and designed for use within applications within mobile equipment and light hoisting applications where metal detection is required. This range of proximity sensors features 1 threaded cylindrical metal bodies, they're unable to be flush-mounted and have been created and designed for direct current circuit applications._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed. Inductive proximity sensors are suitable for use in virtually any industry. Common applications include the food and beverage industry, robotics, machine tools, packaging and materials handling and so much more. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ XS218BLPAL2 General Purpose Inductive Proximity Sensor (XS)._x000D_ XS2 Inductive Proximity Sensor (part of the OsiSense XS range)._x000D_ General purpose._x000D_ Cylindrical (barrel) M18._x000D_ Size 53 mm._x000D_ Fixed body._x000D_ Non-Flush mountable._x000D_ Nickel plated brass body, PBT front._x000D_ Discrete signal, 3-wire._x000D_ 8 mm sensing distance (nominal)._x000D_ Output 1 NO, PNP._x000D_ 2 m Cable connection._x000D_ [Us] rated supply voltage 12 to 24 V dc (with reverse polarity protection)._x000D_ Front detection face._x000D_ 1 LED yellow (output)._x000D_ Threaded length 33 mm, Length 53 mm._x000D_ Weight 0.105 Kg._x000D_ IP67 conforming to IEC 60529._x000D_ Vibration resistance to IEC 60068-2-6._x000D_ Shock resistance to EN 60068-2-27._x000D_ CE marked._x000D_ Certificates._x000D_ UL, CSA.
