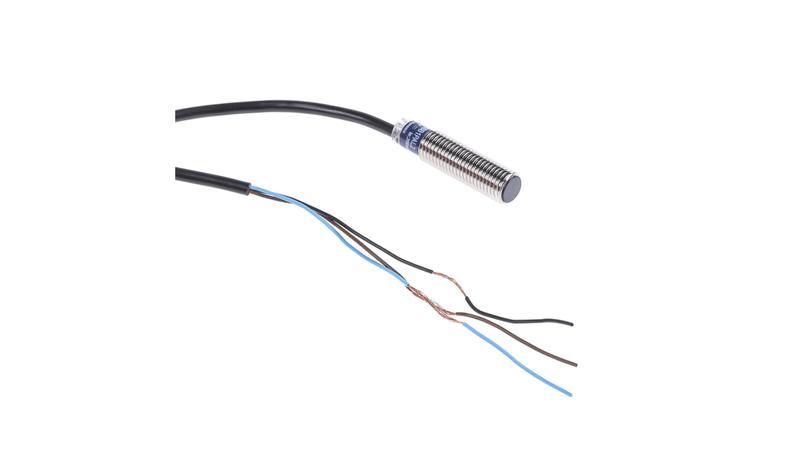

XS508B1PAL2 Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M8 x 1, 1.5 mm Detection, PNP Output, 10 → 36 V

Telemecanique Inductive Proximity Sensors OsiSense XS._x000D_ Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded)._x000D_ OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase._x000D_ Styles Available._x000D_ Flush and Non-Flush (shielded and non-shielded)._x000D_ Short and long body._x000D_ PNP and NPN versions (compatible with PLCs and controllers)._x000D_ 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch)._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ Applications._x000D_ Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics._x000D_ Material working, machine tools. Packaging. Food and beverage. Robotics._x000D_ XS508B1PAL2 Inductive Proximity Sensor XS5._x000D_ Cylindrical M8._x000D_ 33 mm Size._x000D_ Fixed body._x000D_ Made from nickel plated brass._x000D_ Discrete output._x000D_ 3-Wire._x000D_ 1.5 mm nominal sensing distance._x000D_ 1 NO._x000D_ DC Output circuit._x000D_ PNP Output type._x000D_ 2 m Cable connection._x000D_ Flush mountable._x000D_ Front detection (PPS)._x000D_ 1 LED (yellow)._x000D_ Threaded length 25 mm._x000D_ Length 33 mm._x000D_ Weight 0.035 kg._x000D_ IP 67 to IEC 60529._x000D_ Certificates._x000D_ CE, CSA, UL.
