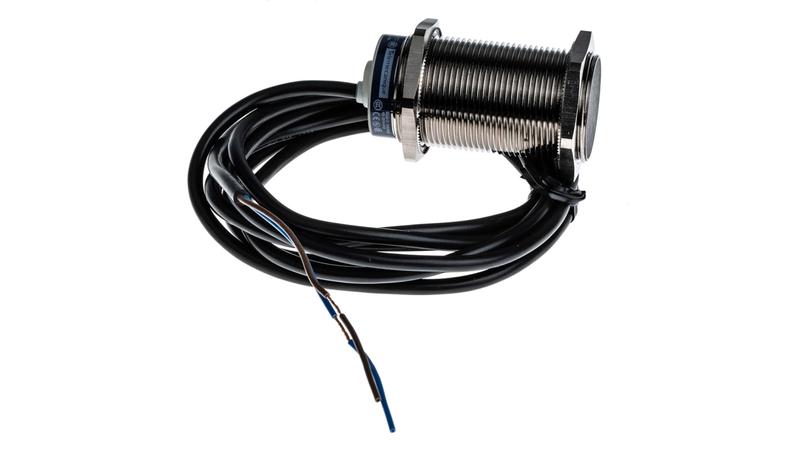

XS630B1MBL2 Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 15 mm Detection, 20 → 264 V ac/dc,

Telemecanique Inductive Proximity Sensors XS._x000D_ Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded)._x000D_ OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase._x000D_ Styles Available._x000D_ Flush and Non-Flush (shielded and non-shielded)._x000D_ Flat form._x000D_ Short and long body._x000D_ PNP and NPN versions (compatible with PLCs and controllers)._x000D_ 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch)._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ Applications._x000D_ Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics._x000D_ Material working, machine tools. Packaging. Food and beverage. Robotics._x000D_ XS630B1MBL2 General Purpose Inductive Proximity Sensor (XS)._x000D_ XS6 Inductive Proximity Sensor (part of the OsiSense XS range)._x000D_ General purpose._x000D_ Cylindrical (barrel) M30._x000D_ Size 62 mm._x000D_ Fixed body._x000D_ Flush mountable._x000D_ Nickel Plated Brass body, PPS front._x000D_ Discrete signal, 2-wire._x000D_ 15 mm (nominal sensing range)._x000D_ Output 1 NC, AC/DC Circuit._x000D_ 2 m Cable connection._x000D_ [Us] rated supply voltage 24 to 240 V ac/dc (50/60 Hz)._x000D_ 1 LED yellow (output)._x000D_ Threaded length 52 mm, Length 62 mm._x000D_ Weight 0.205 Kg._x000D_ IP68 double insulation conforming to IEC 60529. IP69K conforming to DIN 40050._x000D_ Vibration resistance to IEC 60068-2-6._x000D_ Shock resistance to EN 60068-2-27._x000D_ CE marked._x000D_ Certificates._x000D_ CSA, UL.
