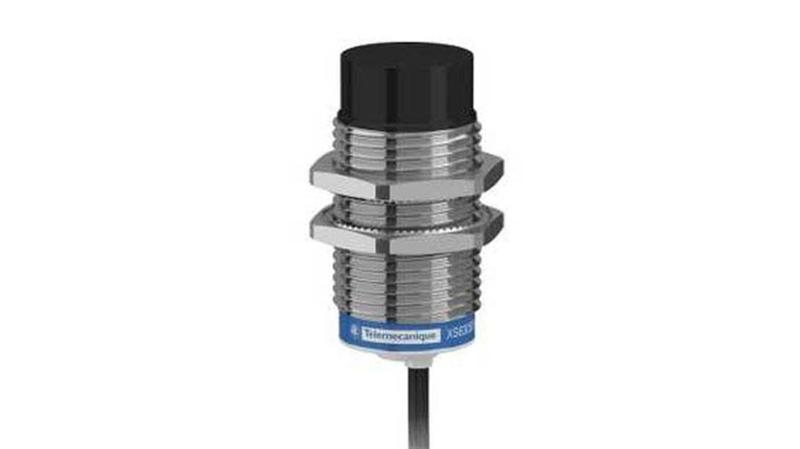

XS630B5PAL2 Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 30 mm Detection, PNP Output, 12 → 48 V

Telemecanique Inductive Proximity Sensors OsiSense XS._x000D_ Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded)._x000D_ OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase._x000D_ Styles Available._x000D_ Flush and Non-Flush (shielded and non-shielded)._x000D_ Short and long body._x000D_ PNP and NPN versions (compatible with PLCs and controllers)._x000D_ 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch)._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ Applications._x000D_ Railway, Mobile equipment, Lifts and escalators, Hoisting._x000D_ Material handling, conveying, logistics._x000D_ Material working, machine tools, Packaging._x000D_ Food and beverage, Pharmaceutical, Robotics._x000D_ XS630B5PAL2 General Purpose Inductive Proximity Sensor (XS)._x000D_ XS6 Inductive Proximity Sensor (part of the OsiSense XS range)._x000D_ Mobile equipment applications._x000D_ Cylindrical (barrel) M30._x000D_ Fixed body 64 mm._x000D_ Non-Flush mount._x000D_ Nickel plated brass body, Front PPS._x000D_ Discrete signal, 3-wire._x000D_ 30 mm (nominal sensing range)._x000D_ Output 1 NO, DC Circuit, PNP._x000D_ 2 m Cable connection._x000D_ [Us] rated supply voltage 12 to 48 V dc with reverse polarity protection._x000D_ Front detection._x000D_ 1 x LED, Yellow output state._x000D_ Threaded Length 39 mm, Length 64 mm, Weight 0.205 kg._x000D_ IP65 conforming to IEC 60529, IP67 conforming to DIN 40050, IP69K._x000D_ CE marked._x000D_ Certificates._x000D_ UL, CSA, E2.
