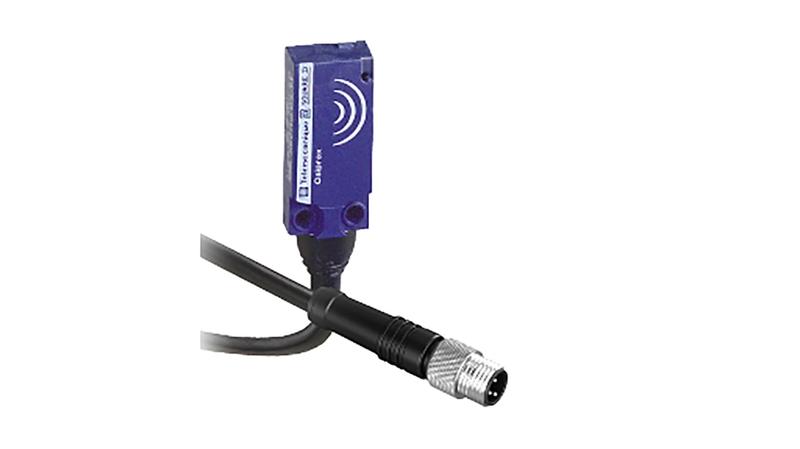

XS7F1A1PAL01M8 Telemecanique Sensors Inductive Block-Style Proximity Sensor, 5 mm Detection, PNP Output, 12 → 24 V dc, IP68

Telemecanique Inductive Proximity Sensors XS Flat form (block)._x000D_ Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in various applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded)._x000D_ Styles Available._x000D_ Flush and Non-Flush (shielded and non-shielded)._x000D_ Short and long body._x000D_ PNP and NPN versions (compatible with PLCs and controllers)._x000D_ 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch)._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ Applications._x000D_ Railway, Mobile equipment, Lifts and escalators, Hoisting._x000D_ Material handling, conveying, logistics._x000D_ Material working, machine tools, Packaging._x000D_ Food and beverage, Pharmaceutical, Robotics._x000D_ XS7F1A1PAL01M8 General Purpose Inductive Proximity Sensor (XS)._x000D_ XS7 Sensor._x000D_ General purpose._x000D_ Flat form (block) 15 x 32 x 8._x000D_ Size 8 mm._x000D_ Fixed body, Flush mountable._x000D_ Plastic (PBT), PBT front._x000D_ Discrete signal, 3-wire._x000D_ Output 1 NO, DC circuit, PNP._x000D_ 3 pins M8 remote male connector, (cable length 0.15 m)._x000D_ [Us] rated supply voltage 12 to 24 V dc (reverse polarity protection)._x000D_ Front detection._x000D_ 1 LED, yellow output._x000D_ Height 32 mm._x000D_ Width 15 mm._x000D_ Depth 8 mm._x000D_ Weight 0.045 Kg,_x000D_ IP68 conforming to IEC 60529._x000D_ Vibration resistance to IEC 60068-2-6._x000D_ Shock resistance to EN 60068-2-27._x000D_ CE marked._x000D_ Certificates._x000D_ UL, CSA, C-Tick.
