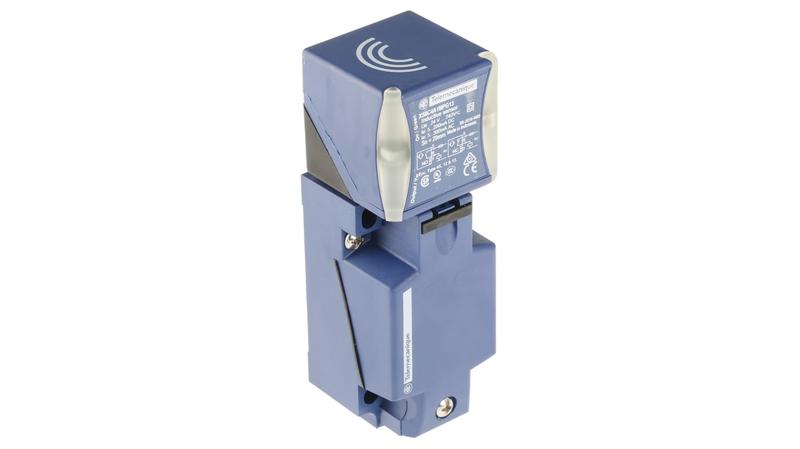

XS8C4A1MPG13 Telemecanique Sensors Inductive Block-Style Proximity Sensor, 20 mm Detection, 20 → 264 V ac/dc, IP65, IP67,

Telemecanique Inductive Proximity Sensors XS._x000D_ Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded)._x000D_ OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase._x000D_ Styles Available._x000D_ Flush and Non-Flush (shielded and non-shielded)._x000D_ Flat form._x000D_ Short and long body._x000D_ PNP and NPN versions (compatible with PLCs and controllers)._x000D_ 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch)._x000D_ How do they work and where can I use them?_x000D_ Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics._x000D_ Material working, machine tools. Packaging. Food and beverage. Robotics._x000D_ XS8C4A1MPG13 General Purpose Inductive Proximity Sensor._x000D_ XS8 Sensor._x000D_ Design form, block - 40 x 40 x 117._x000D_ Size 117 mm._x000D_ Fixed body, flush mountable._x000D_ Made from Plastic, PBT Front._x000D_ Discrete output, 2-wire._x000D_ Nominal sensing distance 20 mm, 5-positions turret head detection._x000D_ 1 NO or 1 NC (programmable) discrete output, AC/CD circuit._x000D_ Screw clamp terminals (4 x 1.5mm)._x000D_ [Us] rated supply voltage 24 to 240 V ac (50/60 Hz), 24 to 240V dc._x000D_ 2 x LED (yellow) output state, LED (green) supply on._x000D_ Length and length – 40 mm, width – 117 mm_x000D_ Net weight 0.244 kg._x000D_ IP67 to IEC 60529 protection, IP65 to IEC 60529 IP69K to DIN 40050._x000D_ CE marked._x000D_ Certificates._x000D_ UL, CSA, CCC.
