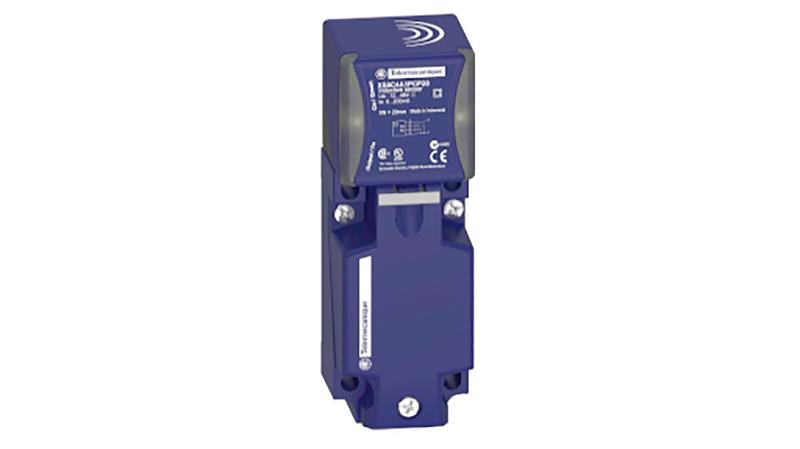

XS8C4A1MPP20 Telemecanique Sensors Inductive Block-Style Proximity Sensor, 20 mm Detection, 20 → 264 V ac/dc, IP65, IP67,

Telemecanique Inductive Proximity Sensors XS._x000D_ Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded)._x000D_ OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase._x000D_ Styles Available._x000D_ Flush and Non-Flush (shielded and non-shielded)._x000D_ Flat form._x000D_ Short and long body._x000D_ PNP and NPN versions (compatible with PLCs and controllers)._x000D_ 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch)._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ Applications._x000D_ Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics._x000D_ Material working, machine tools. Packaging. Food and beverage. Robotics._x000D_ XS8C4A1MPP20 General Purpose Inductive Proximity Sensor (XS)._x000D_ XS8 Inductive Proximity Sensor (part of the OsiSense XS range)._x000D_ General purpose._x000D_ Flat Form 40 x 40 x 117._x000D_ Fixed body 117 mm._x000D_ Flush mount._x000D_ Plastic body PBT, Front PBT._x000D_ Discrete signal, 2-wire._x000D_ 20 mm (nominal sensing range)._x000D_ Output 1 NO or 1 NC, Programmable._x000D_ Screw clamp terminals._x000D_ [Us] rated supply voltage 24 to 240 V ac/dc._x000D_ 5 Positions turret head._x000D_ 1 x Tapped entry for M20 x 1.5 Cable gland._x000D_ 1 x LED Green supply on, 1 x LED Yellow output state._x000D_ Height 40 mm, Width 117 mm, Length 40 mm._x000D_ IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050._x000D_ CE marked._x000D_ Certificates._x000D_ UL, CSA, CCC.
