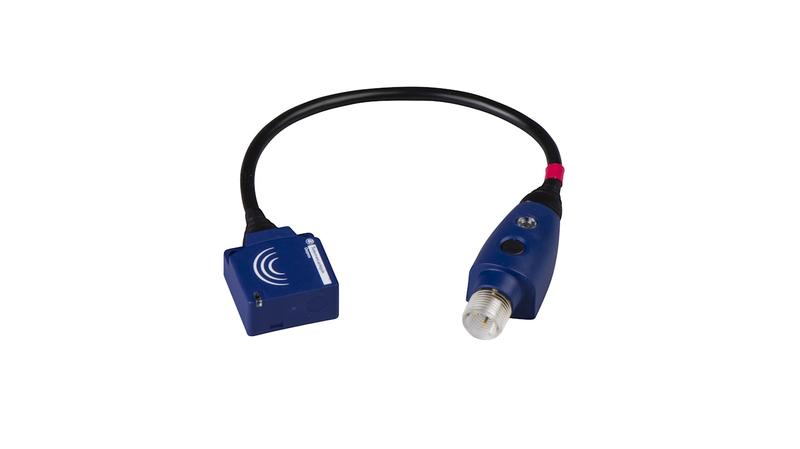

XS9E11RMBL01U20 Telemecanique Sensors Inductive Block-Style Proximity Sensor, 10 mm Detection, Discrete Output, 24 → 240 V, IP67

The Schneider Electric XS series sensors for rotation monitoring. These analogue output proximity sensors are solid-state sensors designed for monitoring displacement. They are not measuring sensors. The operating principle of the sensor is that of a damped oscillator. The degree of damping will depend on the distance of an object from the sensing face. The sensor will sense the distance and produce an output current with a value directly proportional to this distance._x000D_ Device application Rotation monitoring_x000D_ Sensor design Flat form 26 x 26 x 13_x000D_ Body type Fixed_x000D_ Detector flush mounting_x000D_ acceptance_x000D_ Flush mountable_x000D_ Material Plastic_x000D_ Enclosure material PBT_x000D_ Type of output signal Discrete_x000D_ Wiring technique 2-wire_x000D_ Discrete output function 1 NC_x000D_ Output circuit type AC/DC_x000D_ Cable length 0.15 m_x000D_ [Us] rated supply_x000D_ voltage_x000D_ 24...240 V AC/DC 50/60 Hz_x000D_ Switching capacity in_x000D_ mA_x000D_ 5...100 mA AC/DC
