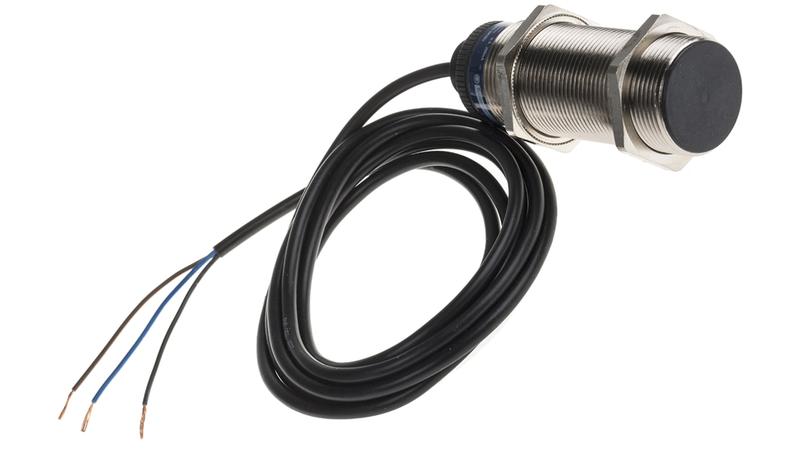

XSAV12373 Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 10 mm Detection, PNP Output, 12 → 48 V

Telemecanique Inductive Sensors_x000D_ Introducing Telemecaniques M30 Rotation Monitoring range of inductive proximity sensors which have been created and designed for use within applications with applications where metal detection is required. These Telemecanique cylindrical OsiSense XS inductive proximity sensors are designed for non-contact sensing of metal objects up to 60mm. They feature LED status display with a flush mountable brass body, each one has a pre-wired 2m cable and reverse polarity protection. They will predominantly be found in applications within the food and beverage industry._x000D_ How do they work and where can I use them?_x000D_ Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed. Inductive proximity sensors are suitable for use in virtually any industry. Common applications include the food and beverage industry, robotics, machine tools, packaging and materials handling and so much more. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas._x000D_ XSAV12373 Rotation Monitoring Inductive Proximity Sensor._x000D_ XSA Sensor._x000D_ Rotation monitoring application._x000D_ Design - Cylindrical (barrel) M30._x000D_ Size 81 mm._x000D_ Fixed body, flush mountable._x000D_ Nickel plated brass, PPS Front._x000D_ Discrete signal, 3-wire._x000D_ Nominal sensing distance 10 mm._x000D_ Output 1 NC, DC circuit, PNP._x000D_ 2 m Cable connection._x000D_ [Us] rated supply voltage 12 to 48 V dc with reverse polarity protection_x000D_ 1 LED, red output._x000D_ Threaded length 67 mm, Length 81 mm, weight 0.3 kg._x000D_ IP67 to IEC 60529._x000D_ CE marked._x000D_ Certificates._x000D_ UL, CSA, CCC.
