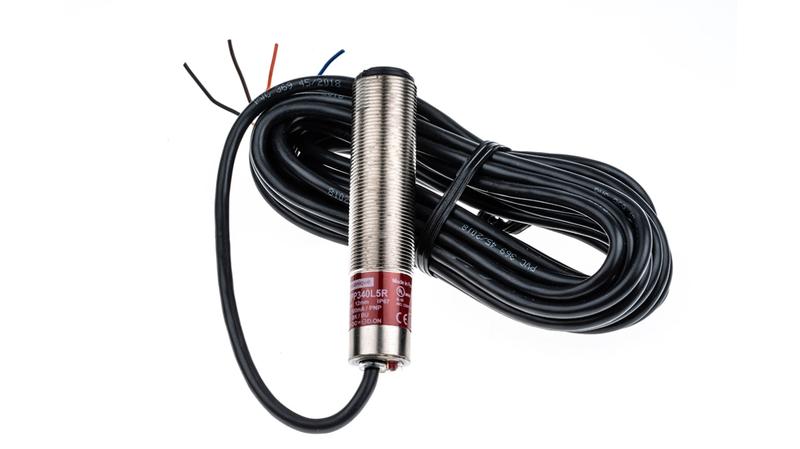

XU2S18PP340L5 Telemecanique Sensors XU2S Series Preventa Light Beam Sender & Receiver, 1 Beam(s), 8m Max Range

Telemecanique Sensors Single Light Beam_x000D_ The Telemecanique sensors XU2S series single light beam is a safety thru-beam pair photo-electric sensors device, constitutes a type 2 safety light curtain conforming._x000D_ It has a maximum scanning distance range of 8m._x000D_ Note:_x000D_ This product is supplied with a full installation instruction manual, which should be strictly adhered to. Particular attention should be given to section 3.5 (installation positioning and electrical inter-phasing)._x000D_ Features and Benefits_x000D_ Flexibility allows connection of up to 4 light beam devices which can protect a zone up to 1200mm high_x000D_ Automatic self-checking every 5ms_x000D_ Built-in muting function allows the light device to be inhibited by an external sensor_x000D_ Single beam sensors (for muting function) available separately_x000D_ Ideal for transfer line applications_x000D_ Solid-state auxiliary output (from the module) PNP 20mA/24Vdc_x000D_ 2 N/O safety outputs_x000D_ Cable length is 5m_x000D_ Applications_x000D_ Machine safeguarding_x000D_ Mining and Quarrying_x000D_ Factory automation industry_x000D_ Pharmaceutical industry_x000D_ Rail and transport_x000D_ Certifications_x000D_ IP67 rated_x000D_ CE certified_x000D_ EN/IEC 60825-1_x000D_ EN/IEC 61496-1_x000D_ EN/IEC 61496-2_x000D_ EN/ISO 13849-1_x000D_ IEC 61496-1-2_x000D_ IEC 61508_x000D_ EN/IEC 60068-2-27_x000D_ EN/IEC 60068-2-6
