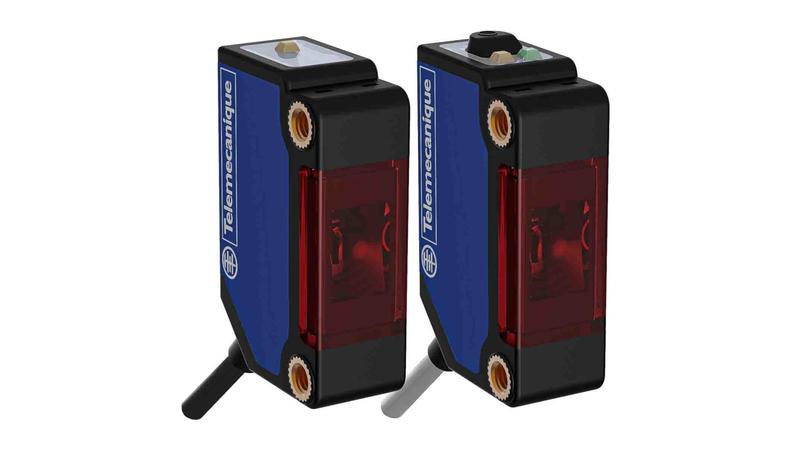

XUM2APSBL2 Telemecanique Sensors Through Beam Photoelectric Sensor, Miniature Sensor, 15 m Detection Range

Telemecanique OsiSense XU range XUM2APSBL2 photoelectric Sensors._x000D_ Telemecanique OsiSense XU Photoelectric sensors provide you everything you require from photoelectric sensors for applications within material handling to food and beverage industries. Various functions are available, diffuse mode, (BGS) Background suppression, polarize reflex, laser reflex and through-beam and through beam. The UX range further is available in 4 internationally recognised formats:_x000D_ General purpose._x000D_ Lasers._x000D_ Forks and frames._x000D_ Specific application sensors._x000D_ How do they work and where can I use them?_x000D_ An OsiSense Photoelectric sensor has a light beam transmitter (light-emitting diode, LED) and a light-sensitive receiver (photo-transistor). A light-emitting diode is an electronic semi-conductor component emitting light when electric current flows through it. The light can be visible or invisible, depending on the transmission wavelength._x000D_ An object is detected when it enters the transmitted light beam and, in so doing, affects the intensity of the light at the receiver._x000D_ Depending on the model and application requirements, the transmission beam is either non-visible infrared or ultraviolet (for detection of luminescent materials). It may also be a visible red or green (for colour mark reading etc.) and laser red (for long sensing distance and short focal length)._x000D_ The advantage of LEDs is their very fast response. To render the system insensitive to ambient light, the current flowing through the LED is modulated to produce a pulsed light transmission. Only the pulsed signal will be used by the photo-transistor and processed to control the load._x000D_ Photelectric Sensor Systems Available._x000D_ Through-Beam or Multimode (set in through-beam mode)._x000D_ Polarised Reflex system or Multimode (with reflector accessory)._x000D_ Multimode sensor (with reflector accessory)._x000D_ Diffuse System or Multimode._x000D_ Optical Forks._x000D_ XUM2APSBL2 OsiSense XUB Photoelectric Sensor._x000D_ XUM Sensor._x000D_ General purpose Single mode._x000D_ Miniature design._x000D_ Made from Plastic (PBT) with a PMMA Lens._x000D_ Thru Beam detection._x000D_ Discrete signal._x000D_ DC Circuit._x000D_ 3-wire._x000D_ PNP Output._x000D_ 1 NO or 1 NC programmable._x000D_ 2 m Cable connection._x000D_ Infrared thru beam emission._x000D_ 20 m nominal sensing distance._x000D_ Solid state output._x000D_ PVC wire insulation._x000D_ LED Green (transmitter/supply on), LED Yellow (receiver/output). GED Green (receiver/stability)._x000D_ [Us] rated supply voltage 12 to 24 V dc with reverse polarity protection._x000D_ 100 mA with short-circuit protection Switching mA capacity._x000D_ 30 mA no-load Current consumption._x000D_ Setting up, Sensitivity by potentiometer._x000D_ Depth 19.5 mm_x000D_ Height 31.5 mm._x000D_ Width 10.8 mm._x000D_ Weight 0.100 kg._x000D_ Approvals_x000D_ CE, UL._x000D_ Standards_x000D_ IEC 60068-2-6, IEC 60068-2-27, IP67 conforming to IEC 60529_x000D_ , IP54 conforming to IEC 60529.
