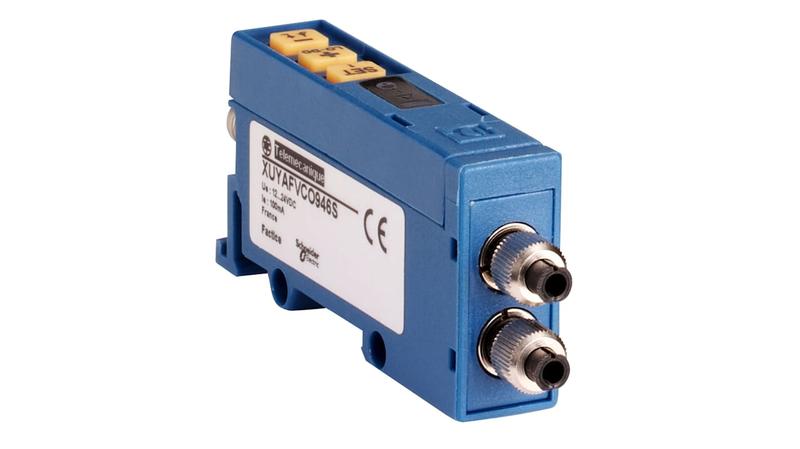

XUYAFPCO966S Telemecanique Sensors Photoelectric Sensor Amplifier, Block Sensor

The Schneider Electric OsiSense XU series photoelectric sensor - fibre optic amplifier is NO/NC programmable and has one,4 pin male M8 connector for electrical connection. It provide sensitivity adjustment with fine adjustment (+/- button)._x000D_ Material Plastic_x000D_ Enclosure material Polycarbonate_x000D_ Pulse frequency 8 kHz_x000D_ Type of output signal Discrete_x000D_ Output type Solid state_x000D_ Discrete output type PNP and NPN_x000D_ Cable length 2 m_x000D_ Supply circuit type DC_x000D_ [Us] rated supply voltage 12...24 V DC with reverse polarity protection_x000D_ Supply voltage limits 10…30 V DC_x000D_ Voltage state 0 guaranteed < 1.4 V_x000D_ Voltage state 1 guaranteed > 3 V_x000D_ Switching capacity in mA 100 mA (overload and short-circuit protection)_x000D_ Switching frequency < 1 kHz_x000D_ Maximum voltage drop <2 V (closed state)_x000D_ Current consumption <= 40 mA no-load_x000D_ Maximum delay response 5 ms for plastic fibre optics 2.2 mm_x000D_ Maximum delay recovery 5 ms plastic fibre optics 2.2 mm
