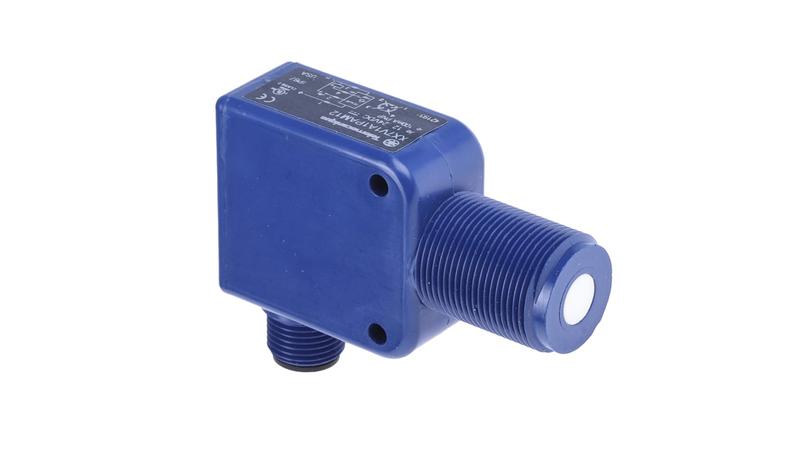

XX7V1A1PAM12 Telemecanique Sensors OsiSense XX Series Ultrasonic Block-Style Proximity Sensor, 50 → 500 mm Detection, PNP

Flat Ultrasonic PNP (NO) - 0.5m Sn._x000D_ Telemecanique Ultrasonic sensors, OsiSense XX series allow you to detect all types of objects in all applications providing high detection performances at distances of up to 8m, all without any physical contact. The ultrasonic sensors have a mode window allowing the suppression of the foreground and the background all using the same sensor. 100% of materials are detected in all applications._x000D_ Ultrasonic sensors are easy to install with integrated connectors, or cable versions in specific models. plus there are various cabling and mounting accessories available which complement and add to the versatility of the Telemecanique OsiSense XX ultrasonic sensors applications._x000D_ OsiSense XX Ultrasonic Sensor Available Modes._x000D_ Diffuse Mode._x000D_ Sensed object reflects the ultrasonic wave back to the sensor changing the output state. Excellent for sensing flat objects when the surface is perpendicular to the ultrasonic beam._x000D_ Reflex Mode._x000D_ The ultrasonic sensor is in a permanent detecting state on a fixed background. When an object breaks the electronic beam the output changes state and this is suited to sensed objects that absorb the ultrasonic wave or objects that do not reflect-back the ultrasonic wave to the sensor. For example: this would be a sponge that would absorb the beam or pointed objects without a perpendicular face._x000D_ Thru-Beam Mode._x000D_ The sensor transmitter permanently transmits the sensor ultrasonic wave to a receiver. If an object breaks the ultrasonic beam this changes the output state of the receiver. Thru-Beam mode is best for small objects and has high accuracy and switching frequencies._x000D_ XX7V1A1PAM12 Flat Form Ultrasonic Sensor Parallelepipedic, PNP NO._x000D_ Features and Benefits._x000D_ Green Premium Product._x000D_ OsiSense XX Ultrasonic Sensor._x000D_ Sensor name XX7._x000D_ Precise object detection of any material._x000D_ Adjustable Sensing Distance sensor._x000D_ Flat Form._x000D_ Diffuse detection system._x000D_ Sensing distance (nominal) to 0.5 m (adjustable with remote teach push-button)._x000D_ Minimum object size to be detected - 2.5mm at 150mm distance._x000D_ Operating distance: adjustable using XXZPB100 (stock no. 6122184)_x000D_ Discrete output signal, function 1 NO._x000D_ 3-wire._x000D_ M12 Male Connector (4 pins)._x000D_ 12° Beam angle._x000D_ Dimensions: H33 mm x W18 mm x D60 mm – Diameter 18 mm._x000D_ Weight 0.06 kg._x000D_ IP67 to IEC 60529._x000D_ CE Marked._x000D_ LED._x000D_ 1 LED – green for supply on._x000D_ 1 LED – yellow for output state._x000D_ Note_x000D_ XX7V1A1PAM12 (stock no. 612-2190) requires Teach Button XXZPB100 (stock no. 612-2184) for setup._x000D_ OsiSense_x000D_ Osisense ultrasonic sensors are ideal for use in many applications as detection of any material including metal, plastic, liquid and any colour is possible, the main types of applications are:_x000D_ Food and Beverage processing._x000D_ For liquid level detection without contact with the liquid_x000D_ Detection of powders_x000D_ Detection of glass bottles_x000D_ Packaging._x000D_ Detection of objects passing on a conveyor._x000D_ Automobile industry._x000D_ Monitoring presence of car windscreens.
