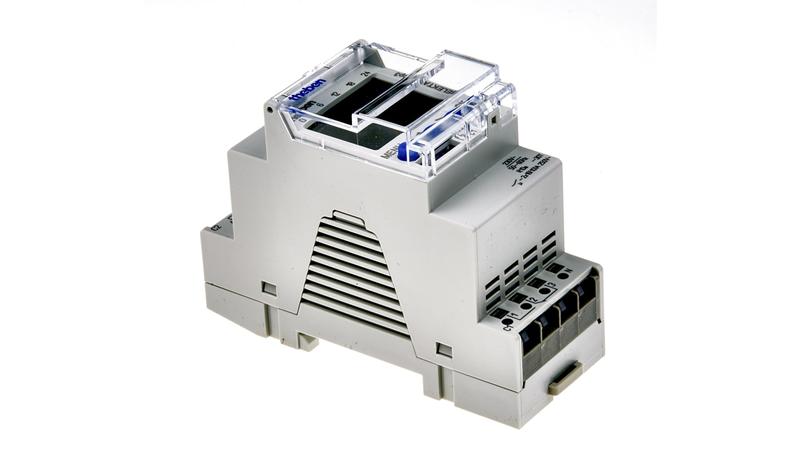

SELEKTA 174 Top3 Theben Digital DIN Rail Time Switch 230 V ac, 2-Channel

Theben Time Switch_x000D_ The Theben time switch is a 2 channel DIN rail double pole double through(DPDT) device. It is an astronomical time switch with the weekly program and 56 memory locations. It is rated with 230VAC operating voltage and frequency ranges between 50Hz and 60Hz. The housing material of this switch is highly temperature resistant and self-extinguishing thermoplastic. This device safe transfers via optional Bluetooth low energy OBELISK top3. It is useful for industrial applications._x000D_ Features and Benefits_x000D_ • 100% compatible with top2_x000D_ • Battery life of 10 years_x000D_ • Change over type of contact_x000D_ • Fixed ON/OFF switching times can be programmed (e. G. Night time interruption)_x000D_ • Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch_x000D_ • Offset for adjusting of sunrise and sunset time_x000D_ • Opening width < 3mm (μ)_x000D_ • Operating temperature ranges between -30°C and 55°C_x000D_ • Position data via coordinates or country/city lists can be programmed_x000D_ • Programming by app possible_x000D_ • Reversible astronomical mode (evenings ON - mornings OFF or evenings OFF - mornings ON) or can be deactivated_x000D_ • Simulation of switching times (calculated astronomical times and programmed ON/OFF switching times)_x000D_ • Switching output is phase independent_x000D_ • Type of connection is Duo Fix spring terminals_x000D_ Certifications_x000D_ • EN 60 730-1_x000D_ • IP20 rated
