3410-3010 Trumeter 3410 Counter, 8 Digit, 40Hz, 10 → 300 V dc, 20 → 300 V ac

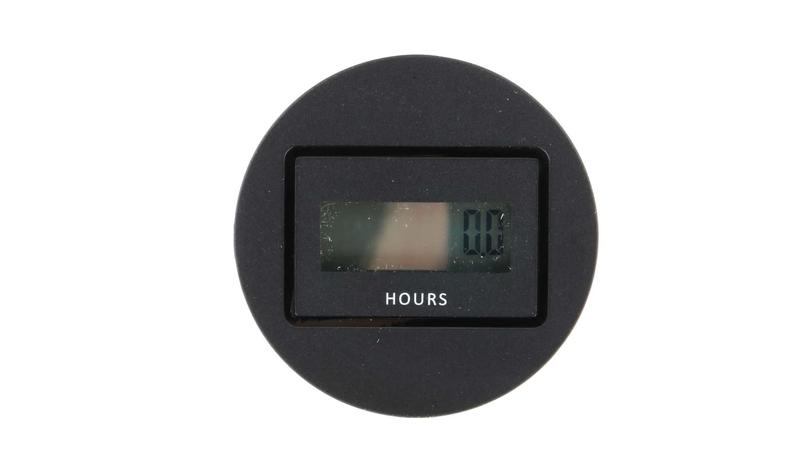

Trumeter Electronic Hour Meter_x000D_ The Trumeter 3410 series electronic hour meter is an 8-digit, round SAE, panel mount type with remote reset device. It provides a large display, with the 7mm height characters in industry-standard housings. All models are sealed and capable of submersion in 2m of water. The hour meters accept a wide operating voltage ranges between 10VDC to 300VDC or 20VAC to 300VAC. All models are used with the included gasket and have a polarized lens that assures high visibility in an outdoor environment. The maximum count frequency of 40Hz. It is useful for industrial applications._x000D_ Features and Benefits_x000D_ Compact depth_x000D_ Optional programmable output thresholds (MOSFET)_x000D_ Optional pre-set count value/ hour meter_x000D_ Optional is up to 3 redi-alerts/ 7 icons_x000D_ Fits in existing panel openings_x000D_ Terminal connection type_x000D_ A choice of 5 housings_x000D_ A choice of reset modes_x000D_ Optional front panel programmable_x000D_ Optional pre-set functions with output_x000D_ Can be programmed with starting time_x000D_ Display range is between 0 and 9999999.9_x000D_ Operation temperature ranges between -40°C and 85°C_x000D_ Certifications_x000D_ UL approved_x000D_ cUL_x000D_ CE certified_x000D_ NEMA4X/_x000D_ IP66 rated
