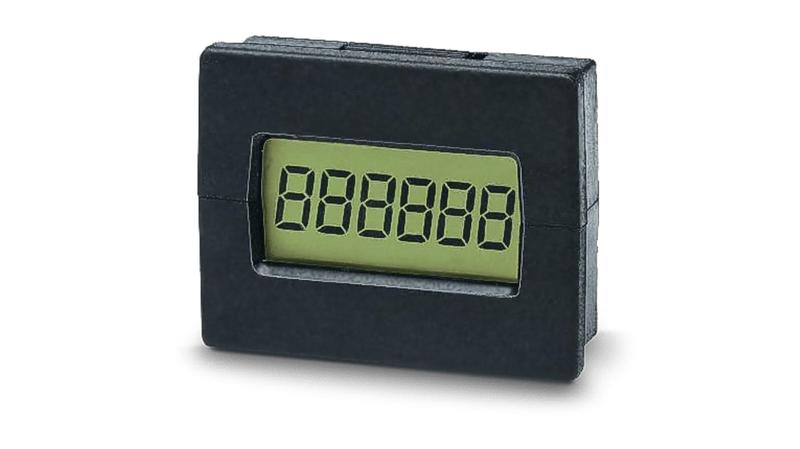

7000 Trumeter Counter, 6 Digit, 10kHz, 2.6 → 3.4 V dc

Trumeter Digital Miniature Counter_x000D_ The Trumeter 6-digit miniature counter is a PCB or panel-mount totalising counter with an LCD display. Designed for minimal power requirements, this device has voltage rating ranges between 2.6VDC and 3.4VDC. It is configured to count electro-mechanical contact closure events using an external resistor and capacitor to eliminate contact bounce._x000D_ It has a maximum frequency count 10KHz._x000D_ Features and Benefits_x000D_ Uses the latest CMOS circuitry to achieve quiescent current consumption of less than 5μA_x000D_ 6mm black character high contrast LCD display_x000D_ External reset input_x000D_ Resettable_x000D_ Low voltage count input_x000D_ Operation temperature ranges between -10°C and 60°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ IP40 rated_x000D_ DIN40050_x000D_ UL approved_x000D_ CE certified
