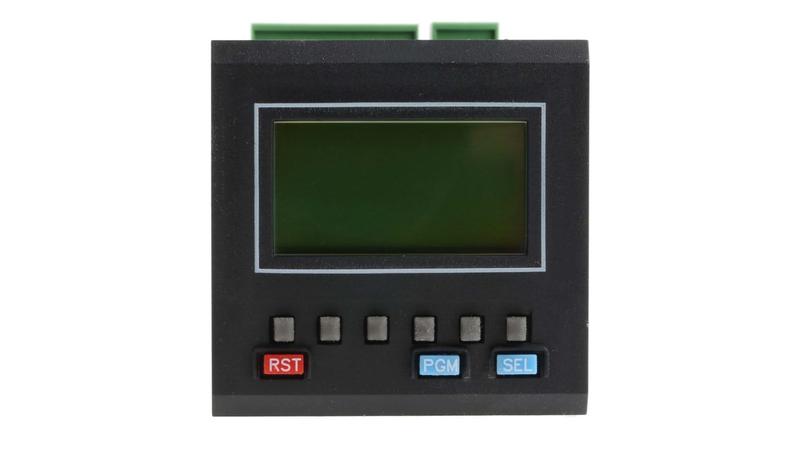

7922 Trumeter 7922 Counter, 6 Digit, 10kHz, 10 → 26 V dc, 85 → 265 V ac

LCD Preset Counter with Prescaler- 7922 Series_x000D_ This versatile preset LCD counter is highly programmable and features a prescaler, quadrature input and EEPROM data storage. The display is a supertwist high visibility backlit LCD that can be viewed from any angle, making this counter highly suitable for any application. The count is shown on the main display, while the preset value is shown on the lower display._x000D_ • Simple programming via menu driven display_x000D_ • 2 Rows of 6-digits, High visibility supertwist LCD display_x000D_ • Backlight programmable ON, OFF or Auto_x000D_ • Configure for quadrate or uni-directional input, dual preset or single preset with batch preset_x000D_ • 40 years data retention with no power_x000D_ • Programmable decimal point up to 3 places_x000D_ • Operates from 85-265 V ac or 10-26 V dc_x000D_ • 12 V dc output to drive a sensor (when AC powered)_x000D_ • Wide range of prescaling_x000D_ • Opto-isolated inputs_x000D_ • Output relay contacts rated at 5A_x000D_ • Output can be set to latch or pulse with programmable pulse duration_x000D_ • IP65 DIN case_x000D_ Trumeter LCD Counter
