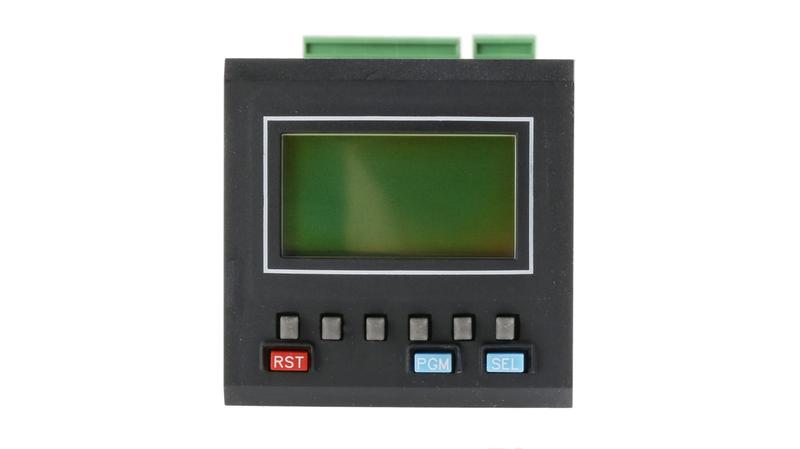

7932 Trumeter Counter, Timer Counter, 6 Digit, 10kHz, 10 → 26 V dc, 85 → 265 V ac

Trumeter Digital Counter_x000D_ The Trumeter 7932 series 6-digit super twist LCD, the programmable preset counter has Prescaler EEPROM data storage. It has a supply voltage rating ranges between 10VDC and 26VDC or 85VAC and 265VAC. It is available in 2 rows of 6 digits, super twist black on silver LCD with yellow/green LED backlight. The count inputs are opto-isolated and can be sink (NPN) or source (PNP). The count is on the main display and the preset value is on the lower display._x000D_ It has a maximum frequency count 10KHz._x000D_ Features and Benefits_x000D_ Simple programming via menu driven display_x000D_ Backlight programmable on, off or auto_x000D_ Programmable decimal point up to 3 places_x000D_ Remote reset method_x000D_ 12VDC output to drive a sensor (when AC powered)_x000D_ Opto-isolated inputs_x000D_ Wide range of prescaling_x000D_ Output relay contacts rated at 5A_x000D_ Output can be set to latch or pulse with programmable pulse duration_x000D_ Standard DIN housing_x000D_ Operation temperature ranges between -10°C and 60°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly line_x000D_ Certifications_x000D_ CE certified_x000D_ UL approved_x000D_ cUL approved_x000D_ IP65 rated
