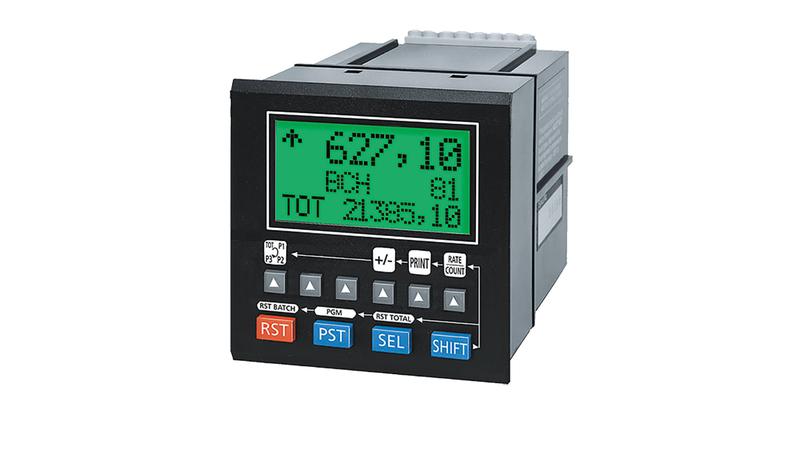

9100 Trumeter 9100 Counter, 10kHz, 85 → 265 V ac

Trumeter Rate Meter/Counter_x000D_ The Trumeter 9100 predetermining counter/ ratemeter is a multi-functional, multi-preset, totalising counter/ratemeter that features a super twist backlit LCD display. It has voltage rating ranges between 85VAC and 265VAC. The ’rate’ mode is signified by an R appearing at the top left-hand corner of the display and counting carries on in the background. The first line of the display shows pulses per minute (PPM) unless a Prescaler is in use. It simultaneously maintains any 3 of the following: count preset, count pre-warn, batch preset, over speed, under-speed condition and displays count, total, and speed._x000D_ It has a maximum frequency count 10KHz._x000D_ Features and Benefits_x000D_ 3 line supertwist LCD display, viewable from any angle_x000D_ Easily programmed in various languages using simple menu structure and 10-key keypad_x000D_ EEPROM retains program and data for 40 years with no power_x000D_ Counting continues while rate measurement is in progress_x000D_ Accurate enough for position sensing and robotic control_x000D_ Can be powered from 85-265V ac for worldwide use_x000D_ Multiplying and dividing prescalers enable display directly in the required units_x000D_ Manual, remote and automatic resets available_x000D_ Remote inhibit and remote keyboard disable_x000D_ Fast electronic or slow contact closure inputs, all with optical isolation_x000D_ Operation temperature ranges between -10°C and 60°C_x000D_ Applications_x000D_ length and speed measurement from measuring wheel with encoder_x000D_ Positioning counter_x000D_ Batch counting_x000D_ Rate or a speed meter_x000D_ Packaging control_x000D_ Fluid blending_x000D_ Cut to length production_x000D_ Batching and stop/start control_x000D_ Numerical position control_x000D_ Certifications_x000D_ IP65 rated_x000D_ NEMA4X_x000D_ CE certified
