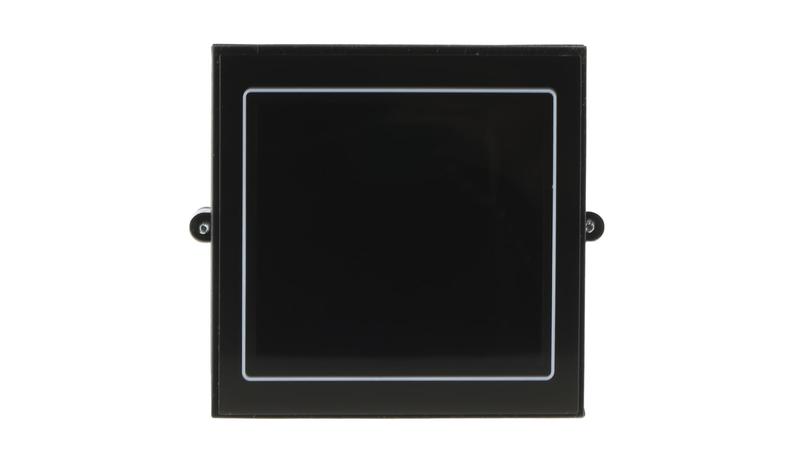

APM-PROC-ANO Trumeter APM LCD Digital Panel Multi-Function Meter for Current, Voltage, 68mm x 68mm

Trumeter Process Meter_x000D_ The Trumeter process meter is the most visible, easy to use, multi-format, programmable panel meter. This utilises user-configurable, non-linearization techniques that can customise performance. The non-linear sensors (such as thermocouples) can be used to maximum potential. It offers a programmable scale and custom annunciators that help you tailor it to display critical parameters exactly when a parameter is out of range. The 2 outputs can be used to connect the process meter to other systems in the process. It measures the current and voltage._x000D_ Features and Benefits_x000D_ 0V to 10V, 0mA to 50mA input range_x000D_ Large, 4-digit, negative LCD display_x000D_ 40-segment bar graph display_x000D_ Separate starburst display area for annunciators, custom messages and alarm information_x000D_ User-adjustable back light brightness, colour and intensity_x000D_ Wide viewing angle_x000D_ Custom annunciators_x000D_ 2 independent outputs_x000D_ 2 independent alarm set-points_x000D_ 4mA to 20mA analogue monitor output_x000D_ USB port to connect to PC for custom user settings_x000D_ Use configurable non-linearization table_x000D_ Cut-out height of 68mm, width of 68mm and depth of 53mm_x000D_ Operating temperature ranges between -10°C and 60°C_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007_x000D_ IP65 rated
