BI20U-CA40-AP6X2-H1141 Turck Inductive Block-Style Proximity Sensor, 20 mm Detection, PNP Output, 10 → 30 V dc, IP67

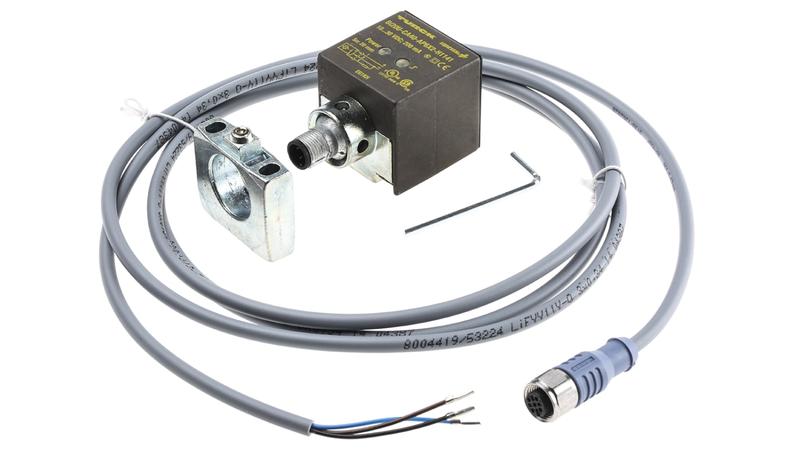

Stubby Cube_x000D_ PBT housing and sensing face. Stock number 405-7167_x000D_ has a metal housing with duroplast sensing face providing high impact and thermal resistance_x000D_ Adjustable sensing head, 5 positions_x000D_ M12 connector termination. Supplied with 2m PUR single-ended, straight connector lead_x000D_ 3 wire dc_x000D_ Yellow LED output status display_x000D_ Green LED for power on, flashing indicates a short circuit_x000D_ Mounting bracket included_x000D_ Uprox Range_x000D_ Extended sensing ranges_x000D_ Sense all metals at the same distance - with no reduction factor_x000D_ IP67 rating (Barrel is IP68)_x000D_ High switching frequency_x000D_ No load current 15mA max._x000D_ Operating Temperature Range -25 → +85°C_x000D_ Short circuit protection Overload protection_x000D_ Reverse polarity protection_x000D_ Inherent weld field immunity
