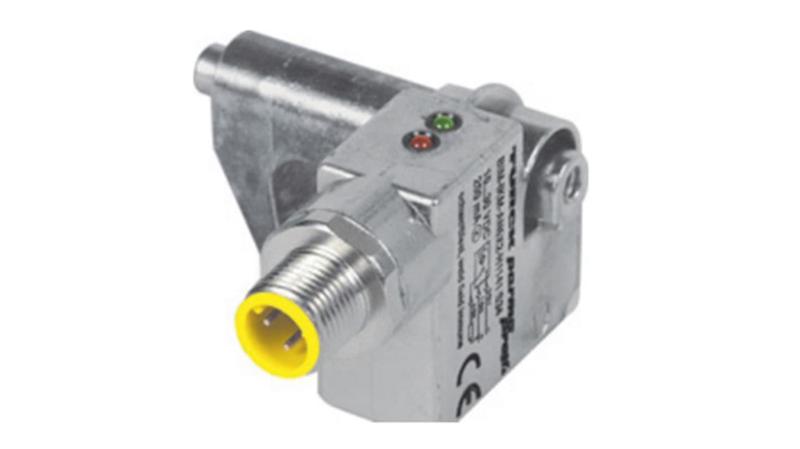

BIM-IKM-AP6X2-H1141/S34 W/KLI3 Turck Inductive Block-Style Proximity Sensor, PNP Output, 10 → 30 V dc, IP67

Turck BIM-IKM Series Magnetic Field Sensors (AC Magnetic-field Immune)_x000D_ The BIM-IKM series are activated by magnetic fields making them ideally suited for detecting piston positions in pneumatic cylinders. As magnetic fields can permeate non-magnetized metals, these units can detect the position of a piston with a permanently mounted magnet through the aluminium wall of the cylinder. They are made even more versatile thanks to having a wide voltage range of 10 to 65 Vdc. A yellow LED indicates the switching state making it easier to monitor._x000D_ Weld-field immune permaprox sensors "freeze" the switching status when detecting a magnetic AC field (50 to 60 Hz). This prevents false switching operations during the welding process. The sensor will resume normal operation when the AC field disappears._x000D_ Rectangular, height 34 mm_x000D_ Front active face_x000D_ Magnetic-inductive sensor_x000D_ Weld resistant to AC fields of 50 to 60 Hz_x000D_ DC 3-wire, 10 to 30 Vdc_x000D_ NO contact, PNP output Male connector, M12 x 1
