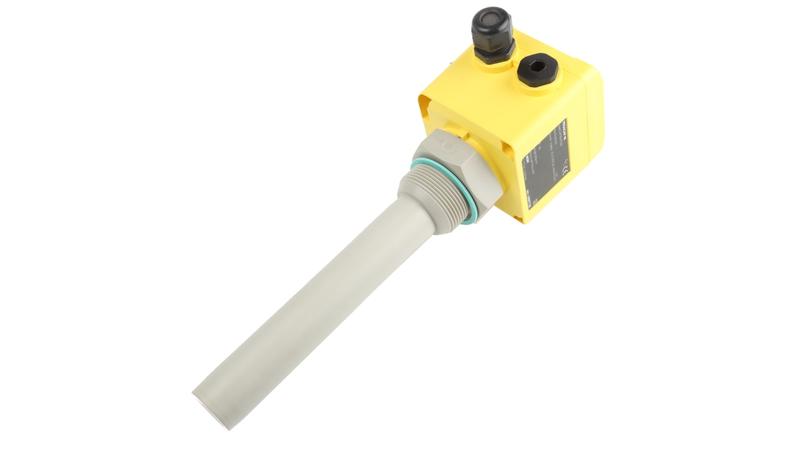

CAP98XPXD Vega Controls VEGACAP 98 Series Capacitance Level Switch, Relay Output, Horizontal, Vertical, Polypropylene Body

Vega Capacitive Level Switch_x000D_ The Vega capacitive level switch has a relay (DPDT) output with a measuring range of up to 2m. It is an adjustment-free and affordable level switch for liquids and bulk solids. It is particularly suitable as overfill protection or dry running protection system in adhesive, conductive products._x000D_ Features and Benefits_x000D_ The supply voltage ranging from 20VAC to 250VAC and 20VDC to 72VDC_x000D_ Process fitting: thread from G1, 1 NPT_x000D_ Minimum time and cost expenditure simple setup without a medium_x000D_ Exact switching point even with strong build-up_x000D_ Long lifetime and low maintenance due to robust mechanical construction_x000D_ Operating temperature ranges between -40°C and 80°C_x000D_ Process pressure: unpressurized operation_x000D_ Vertical or horizontal mount_x000D_ A/B detection modes, A_x000D_ max. detection or overfill protection, B. min. detection or protection against dry running of pumps_x000D_ LED for indication of switching mode_x000D_ Integration time 0.5 seconds_x000D_ Adjustment free_x000D_ Polypropylene probe_x000D_ Thread size is 1in BSP_x000D_ Cable entry 1 x PG 13.5_x000D_ Mounting kit is available separately. Consists of a 2mm stainless steel angle bracket (D150x H200 x W150mm) and polypropylene locknut_x000D_ Applications_x000D_ Used for detection of maximum and minimum levels in vessels_x000D_ Suitable for use with liquids, light solids and adhesive materials_x000D_ Certifications_x000D_ IP66 rated
