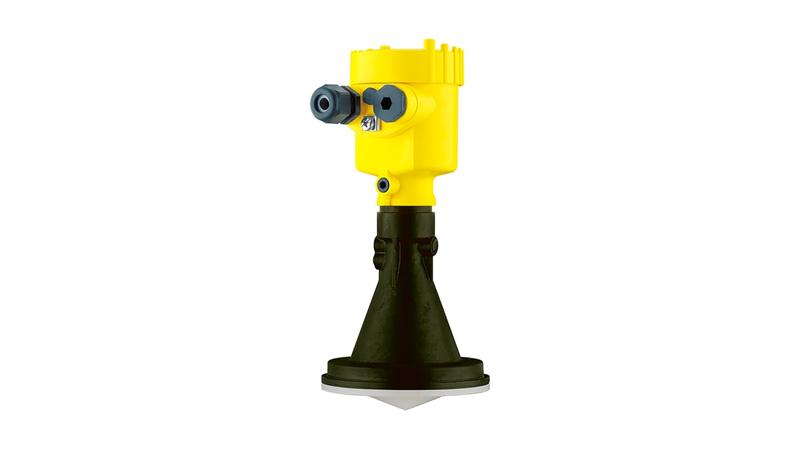

PS61.XXBXXHKMXX Vega VEGAPULS 61 Series Radar Sensor Level Radar, HART Output, Panel Mount, Polypropylene Body

Vega Radar Level Sensor_x000D_ The Vega radar level sensor has an output current rating of 4mA to 20mA HART and measuring range up to 35m. It is made of high-quality and durable material. This product with a plastic horn antenna (ø80mm) is an affordable and reliable radar sensor for continuous level measurement of liquids and is ideal for simple process conditions. It features simple mounting possibilities, which make it extremely versatile. Additionally, the antenna is encapsulated and ensures a maintenance-free operation._x000D_ Note:_x000D_ PLICSCOM module and VEGADIS 61 remote housing available separately_x000D_ Note:_x000D_ This product must be licensed by the user and is supplied with a licensing application form. Licensing is free of cost. Users should contact RS Technical in case of any difficulty and for clarification of requirements._x000D_ Features and Benefits_x000D_ Unaffected by temperature, vacuum, pressure, vapours, gases or density_x000D_ Non-contact measurement with microwave pulses_x000D_ Accurate to 5mm using Echofox technology_x000D_ Maintenance-free rugged design_x000D_ Display/adjustment in head via PLICSCOM module or VEGADIS 61 remote housing (both types not supplied with unit)_x000D_ Housing / Protection: Plastic single chamber_x000D_ Display/adjustment module PLICSCOM: without_x000D_ Vessel pressure ranges between -1bar and 3 bar_x000D_ Housing material is PBT_x000D_ Transducer material is PVDF_x000D_ Simple calibration and in-head display of echo curve_x000D_ Fully communicative built-in data and trend logging_x000D_ Certifications_x000D_ IP66 rated_x000D_ IP67 rated
