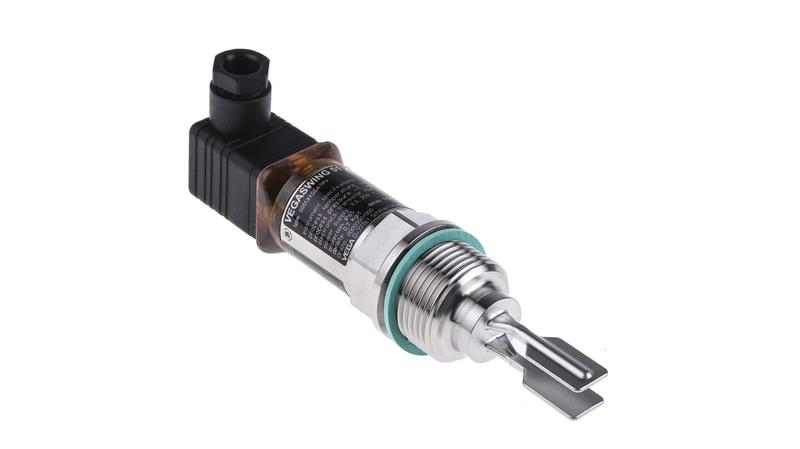

SG51.XXSGATPV Vega VEGASWING 51 Series Tuning Fork Level Switch, PNP Output, Horizontal, Stainless Steel Body

Vega Vibrating Level Switch_x000D_ The Vega universal vibrating level switch for liquids has PNP transistor output. It detects the limit level reliably with millimetre accuracy. This can be used as an empty or full detector, as approved overfill protection, dry running protection or pump protection in vessels and pipelines. It is an affordable solution with maximum reliability and safety. This can be used as an empty or full detector, where it reliably detects limit level to within millimetres. Vibrating Liquid/Solid Level Probes – Squings._x000D_ All of these probes are maintenance-free and have an external LED switch status indication._x000D_ Features and Benefits_x000D_ Operating voltage ranging from 9.6VDC to 35VDC_x000D_ Process fitting for pipe thread, cylindrical is G A, G A, G1 A and American pipe is NPT, NPT, 1 NPT_x000D_ Precise and reliable function due to product-independent switching point_x000D_ Low maintenance costs_x000D_ Minimum time and cost, simple setup without a medium_x000D_ Process fitting material is Thread G1 PN64, DIN3852-A/316L_x000D_ Operating temperature ranges between -40°C and 100°C_x000D_ Electrical connection/Protection_x000D_ High-quality design and build quality_x000D_ Accurate and reliable with integral self-monitoring_x000D_ Unaffected by product density, conductivity, or viscosity (up to 10 Paos)_x000D_ High corrosion resistance, 316 stainless steel housing and fork_x000D_ Ultra-compact, 40mm fork and housing design_x000D_ Maximum current is 250mA_x000D_ Applications_x000D_ Industrial use_x000D_ Point level detection for bilge and leakage monitoring_x000D_ Oil tank point level detection in the rotor gearbox_x000D_ Certifications_x000D_ IP67 rated (Valve plug termination)_x000D_ IP65 rated (Valve plug)_x000D_ CE certified
