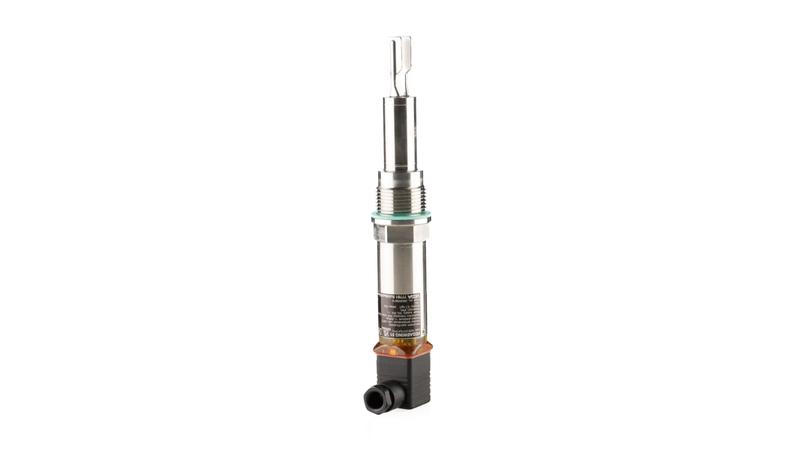

SG51.XXTGATPVL Vega VEGASWING 51 Series Tuning Fork Level Probe, PNP Output, Horizontal, Stainless Steel Body

Vega Vibrating Level Switch_x000D_ The Vega universal vibrating level switch for liquids has PNP transistor output. This is independent of the mounting position, it detects the limit level reliably with millimetre accuracy. This can be used as an empty or full detector, as approved overfill protection, dry running protection or pump protection in vessels and pipelines. It is an affordable solution with maximum reliability and safety._x000D_ Note:_x000D_ This is the manufacturer's referral for the VEGASWING 71AVibrating Liquid/Solid Level Probes – Squings_x000D_ All of these probes are maintenance-free and have an external LED switch status indication_x000D_ Features and Benefits_x000D_ The supply voltage ranging from 10VDC to 55VDC_x000D_ Process fitting for thread is G A, G1 A, NPT or 1 NPT and hygienic fittings is Tri-Clamp 1", Tri-Clamp 1", bolting DN 25 PN 40, bolting DN 40 PN 40, SMS_x000D_ Precise and reliable function due to product-independent switching point_x000D_ Minimum time and cost expenditure simple setup without a medium_x000D_ High chemical resistance 316L stainless steel housing and switch point of 104mm_x000D_ High repeatability switching_x000D_ Unaffected by product density, conductivity, dielectric constant or viscosity (up to 10,000 mPa)_x000D_ Process fitting / Material: Thread G1 PN64, DIN3852-A/316L_x000D_ Maximum power consumption is 0.5W_x000D_ Electronics: Transistor PNP 9.6VDC to 35VDC_x000D_ Electrical connection/Protection_x000D_ Switching point: with extended switching point_x000D_ Operating temperature ranges between -40°C and 150°C_x000D_ Applications_x000D_ Small level switch version with stainless steel housing_x000D_ Point level detection for bilge and leakage monitoring_x000D_ Oil tank point level detection in the rotor gearbox_x000D_ Certifications_x000D_ IP67 rated (Valve plug termination)_x000D_ IP65 rated (Valve plug)_x000D_ CE certified
