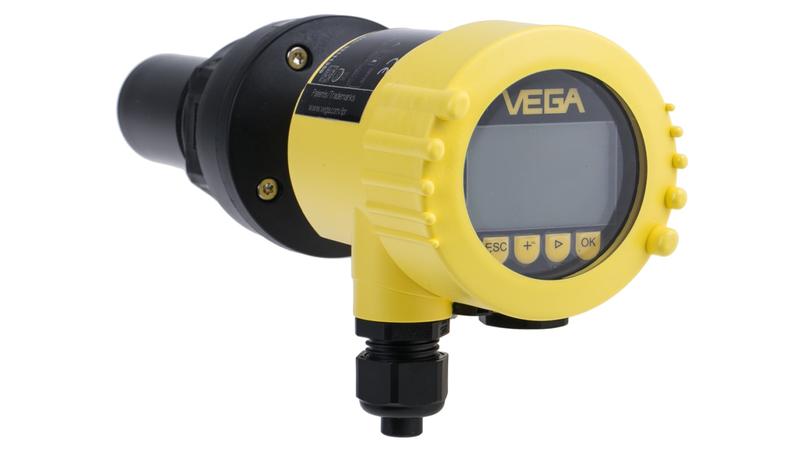

SN61XXAGHKMA Vega Controls VEGASON 61 Series Ultrasonic Level Probe, Plastic Body

Vega Ultrasonic Level Sensor_x000D_ The Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is from 0.25m to 5m for liquid and 0.25m to 2m for solid. The measurement is independent of density, opacity, conductivity or dielectric constant of liquid._x000D_ Features and Benefits_x000D_ Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time_x000D_ ECHOFOX signal processing with Fuzzy logic_x000D_ Adjustment with PLICSCOM, HART handheld or PC_x000D_ Indicating adjustment module is mount_x000D_ Housing material PBT (plastic), transducer PVDF_x000D_ Rugged, maintenance-free and accurate_x000D_ This is 2-wire version, also available in 4-wire version and without integral display/programming unit_x000D_ 3bar maximum vessel pressure_x000D_ Intrinsically safe_x000D_ Plug connection M20x1.5/without_x000D_ Applications_x000D_ Liquids and solids in virtually all the industries_x000D_ Water and sewage water industry_x000D_ Certifications_x000D_ IP66 rated_x000D_ CE certified
