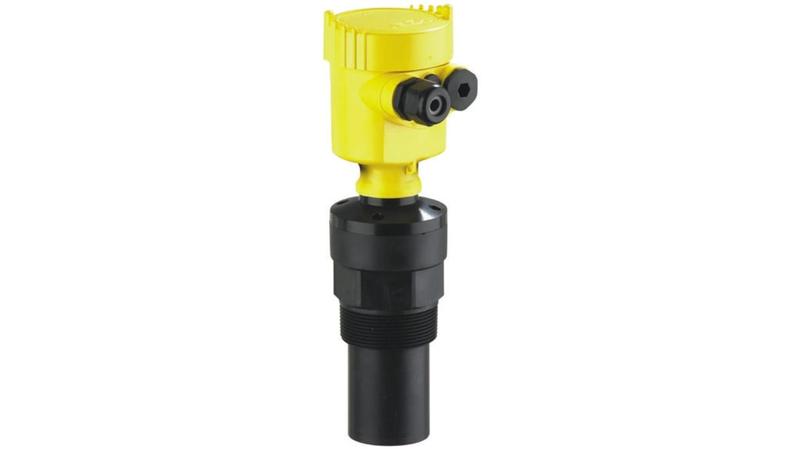

SN62.CXAGHKMX Vega VEGASON 61 Series Ultrasonic Level Probe, Plastic Body, ATEX-Rated

Vega Ultrasonic Level Sensor_x000D_ The Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is from 0.4m to 8m for liquid and 0.4m to 3.5m for solid. This sensor is also suitable for the detection of bulk solids in small vessels or silos. The non-contact measuring principle is unaffected by this product’s features and allows setup without a medium._x000D_ Features and Benefits_x000D_ Price-favourable solution for simple applications_x000D_ Maintenance-free operation through non-contact measuring principle_x000D_ Process material is thread G2A/PVDF_x000D_ Reliable measurement, independent of product features_x000D_ Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time_x000D_ ECHOFOX signal processing with fuzzy-Logic_x000D_ Without adjustment with PLICSOM_x000D_ Protection is cable entry M20 x 1.5, without plug connection_x000D_ Measurement is independent of density, opacity, conductivity or dielectric constant of liquid_x000D_ Applications_x000D_ Liquids in average-size storage vessels or open basins_x000D_ Detection of bulk solids_x000D_ Level measurement in a standpipe_x000D_ Level measurement in basins_x000D_ Industrial use in water and waste water sector_x000D_ Level measurement and point level detection in the storage tank for wet strength agent_x000D_ Certifications_x000D_ ATEX_x000D_ IEC_x000D_ Shipbuilding_x000D_ FM_x000D_ CSA_x000D_ GOST_x000D_ PTB 03 ATEX 2213X_x000D_ IP66/IP68 (0,2bar) rated_x000D_ IP66/IP67 rated_x000D_ IP66/IP68 (1bar) rated
