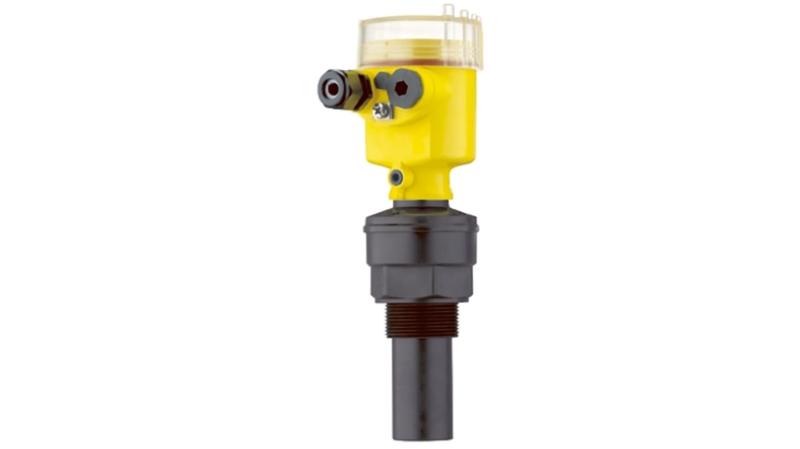

SONS61.EXXX Vega VEGASON 61 Series Vibrating Rod Ultrasonic Level Sensor, Relay Output

Vega Ultrasonic Level Sensor_x000D_ The Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is up to 5m for liquid and 2m for bulk solid. The time from emission to reception of the signals is proportional to the level in the vessel. This sensor is always mounted at the top._x000D_ Features and Benefits_x000D_ Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time_x000D_ ECHOFOX signal processing with Fuzzy-Logic_x000D_ Adjustment with PLICSOM, HART handheld or PC (not supplied) Protection: IP66/IP67, cable entry M20 x 1.5, without plug connection_x000D_ Measurement is independent to density, opacity, conductivity or dielectric constant of liquid_x000D_ Accuracy better than 0.2% or ±10mm_x000D_ Non-contact measurement_x000D_ Unaffected by product properties_x000D_ Adjustment without a medium_x000D_ Applications_x000D_ Level measurement of liquids and for use in small bulk solids vessels_x000D_ Suitable for the measurement of liquids and solids in virtually all industries, particularly in the water and waste water sector_x000D_ Certifications_x000D_ ATEX II 1G, 1/2G_x000D_ 2G EEx ia IIC T6_x000D_ IP66 rated_x000D_ IP67 rated
