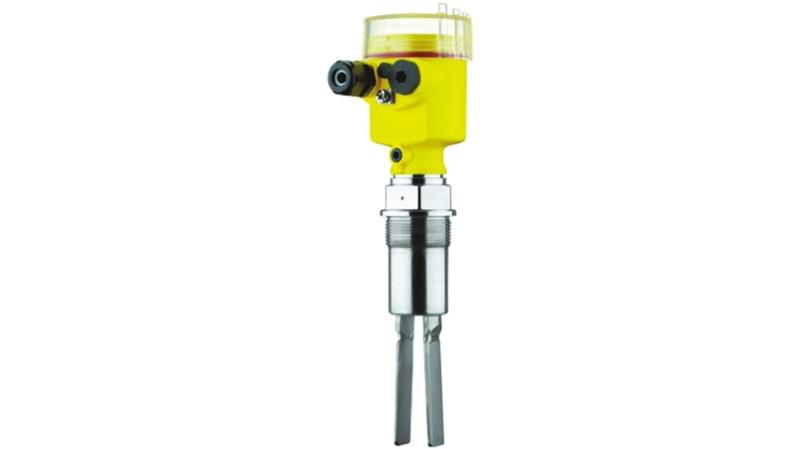

WAVES61.EEJ2RA Vega VEGAWAVE 61 Series Vibrating Level Switch Vibrating Level Switch, Relay Output, Cable, ATEX-Rated

Vega Vibrating Level Switch_x000D_ The Vega vibrating level switch has a relay (DPDT) output. It is energized by a piezo crystal and it vibrates at a fixed amplitude. If the vibrating rod is covered by the product, the amplitude change is detected by the integral electronics and converted into a switch signal. The switching condition is visible from outside via a two-colour LED. Vibrating Liquid/Solid Level Probes - Squings._x000D_ All of these probes are maintenance-free and have an external LED switch status indication._x000D_ Features and Benefits_x000D_ The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDC_x000D_ Process fitting material is thread G1 PN25, DIN3852-A_x000D_ Easy setup without adjustment_x000D_ Product-independent switching point_x000D_ Rugged sensor construction_x000D_ Insensitive to build-up and statically charged products_x000D_ Solid densities from 8g/l reliably detected_x000D_ maintenance-free and does not wear out easily_x000D_ External LED switch_x000D_ Housing material PBT (plastic)_x000D_ Density is greater than 100g/l_x000D_ Breaking capacity maximum 750VA, 54W_x000D_ Applications_x000D_ Typical applications are overfill and low-level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxides_x000D_ Almost all the bulk solids applications_x000D_ Certifications_x000D_ IP66 rated_x000D_ IP67 rated_x000D_ ATEX II 1/3 D IP6X T
