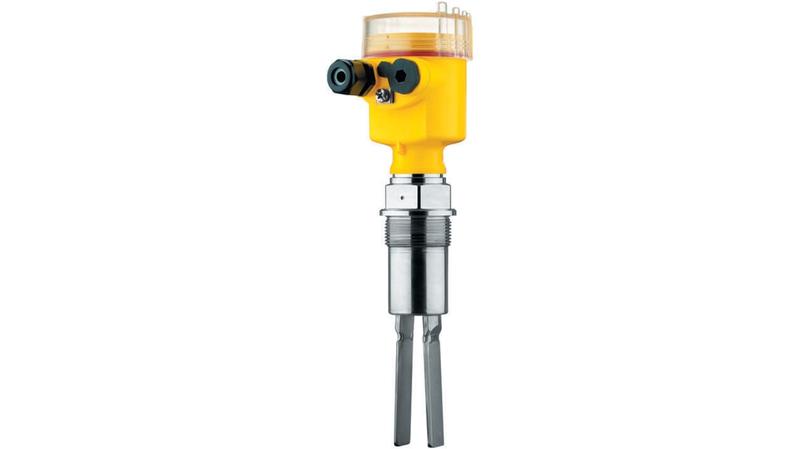

WAVES61.EXX2RA Vega VEGAWAVE 61 Series Tuning Fork Level Switch, Relay Output, Horizontal, Aluminium/PBT Body

Vega Vibrating Level Switch_x000D_ The Vega vibrating level switch has a relay (DPDT) output. This level switch detects the minimum or maximum level reliably. The tuning fork is ideal for use in adhesive and abrasive products as well as in bulk solids with low density. It detects light bulk solids, even those down to 8g/L. The robust construction also makes it possible to use it in very heavy media. Vibrating Liquid/Solid Level Probes – Squings._x000D_ All of these probes are maintenance-free and have an external LED switch status indication._x000D_ Features and Benefits_x000D_ The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDC_x000D_ Process fitting material is thread from G 1 A or 1 NPT_x000D_ Easy setup without adjustment_x000D_ Product-independent switching point_x000D_ Rugged sensor construction_x000D_ Insensitive to build-up and statically charged products_x000D_ maintenance-free and does not wear_x000D_ External LED switch_x000D_ Housing material PBT (plastic)_x000D_ Housing protection_x000D_ Switching current is 400mA (maximum)_x000D_ Blocking current is greater than 100μA_x000D_ Switching delay ON: approx. 0.5 seconds/OFF: approx. 1 second_x000D_ Probe length is 220mm (8.7in)_x000D_ Applications_x000D_ Ideal level switch for almost all bulk solids applications_x000D_ Used for overfill and low-level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxides_x000D_ Applications in heavy, fine to coarse bulk solids_x000D_ Certifications_x000D_ IP66 rated_x000D_ IP67 rated_x000D_ ATEX II 1/3 D IP66 T
