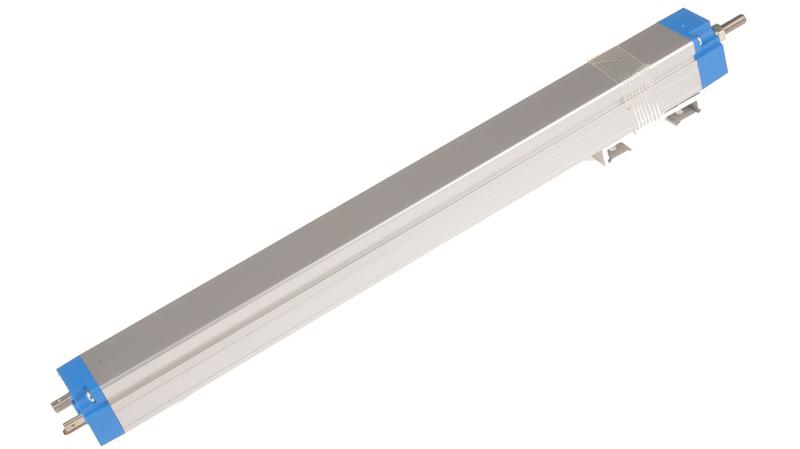

RE115L12E502W6017 Vishay REC 115L Series Linear Measuring Linear Transducer

Slide movement sensors for cylinder servo control_x000D_ Vishay Sfernice REC 115L Series_x000D_ Slide movement sensors for cylinder position servo control_x000D_ Universal model covering applications using references W06002, W06007 and W06008 (ball joint option for the first two of these)_x000D_ Plastic track technology_x000D_ Measuring accuracy unaffected by temperature thanks to voltage division mode of operation_x000D_ High level of accuracy and extremely long service life_x000D_ DIN 43650 hydraulic connector outputs, mounted via moveable brackets (supplied with transducer)_x000D_ A DIN 43650 hydraulic connector will be required, see data sheet for connection details_x000D_ The Vishay REC 115 L series, conductive plastic precision linear transducer has measurement range up to 1000 mm with high accuracy._x000D_ Measurement range 25 mm to 1000 mm_x000D_ High accuracy ± 1 % down to ± 0.025 %_x000D_ Excellent repeatability_x000D_ Essentially infinite resolution_x000D_ Non sensitive to temperature variations
