| Dim | (L x W x H) 114.3 x 6.1 x 112.5 mm |
| Load | 600 Ω |
| Content | 1 |
| Height | 112.5 |
| Length | 114.3 |
| Width | 6.1 |
| Configuration | DIP switch |
| Connection | Screws |

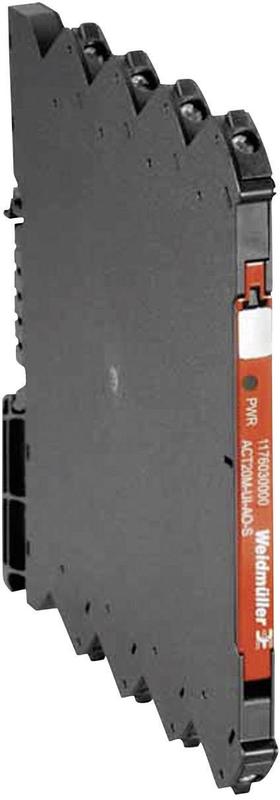

| Type | ACT20M-AI-AO-S |
| Type | DC 3-way active isolator, configurable via DIP switch |
| Cross section (inflexible) (max.) | 2.5 |
| Cross section (inflexible) (min.) | 0.5 |
| Input signal (current) (max.) | 20 |
| Input signal (voltage) (max.) | 10 |
| Input resistance | 70 |
| Supply voltage (num.) | 24 |
| Connection | 0.5 - 2.5 mm² |
| Output signal | 0/4 … 20 mA 0/2 or 0/1 … 5 … 10 V |
| Input signal | 0/4 … 20 mA 0/2 … 10 V or 0/1… 5 V |
| Operating voltage | 300 V (max) |
| Max. operating voltage | 300 |
| RoHS-compliant | Yes |
| Max. ambient temperature | +70 |
| Min. ambient temperature | -25 |
| Input signal (current) | 0 mA-20 mA, 4 mA-20mA |
| Input signal (voltage) | 10 V |
| Output (current) | 0 mA-20 mA, 4 mA-20 mA |
| Output (voltage) | 0 V-10 V, 0 V-5 V |
| Product type | Signal converter |
