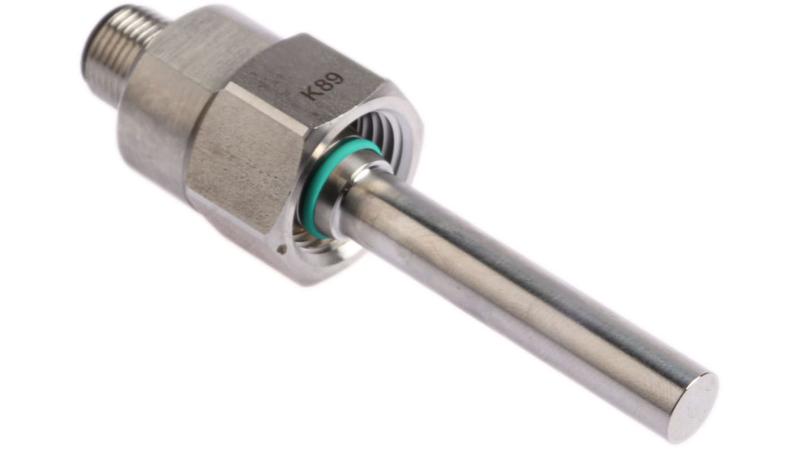

SF5200 ifm electronic SF5 Series Modular Flow Monitoring Flow Sensor for Gas, Liquid, 200 (Gases) ccm/s, 3 (Liquids) ccm/s

ifm electronic Flow Sensor_x000D_ The ifm electronic SF5 series modular flow monitoring sensor sense flow rate for liquid is 3 ccm/s to 300 cm³/s and for gases is 200 ccm/s to 3000 cm³/s. The sensor with ceramic housing can be used in aggressive media. This product range comprises of evaluation units for control cabinet installation or local mounting. Depending on the unit, it is possible to monitor flow, temperature and/or wire break. All units indicate the flow with an LED bar graph. The evaluation units for local mounting are connected to the flow sensor directly at the measuring point using an M12 connector. The sensors and evaluation systems are designed and approved for use in hazardous areas, according to the applicable directives. It is suitable for high-temperature range._x000D_ Features and Benefits_x000D_ Connection type is M18 x 1.5_x000D_ Maximum operating pressure is 300bar_x000D_ For connection to an evaluation unit_x000D_ Very high-pressure resistance_x000D_ Simple process connection via adapter_x000D_ Robust design for use in harsh industrial environments_x000D_ Certifications_x000D_ DIN IEC 68-2-27_x000D_ DIN IEC 68-2-6_x000D_ IP67 rated
