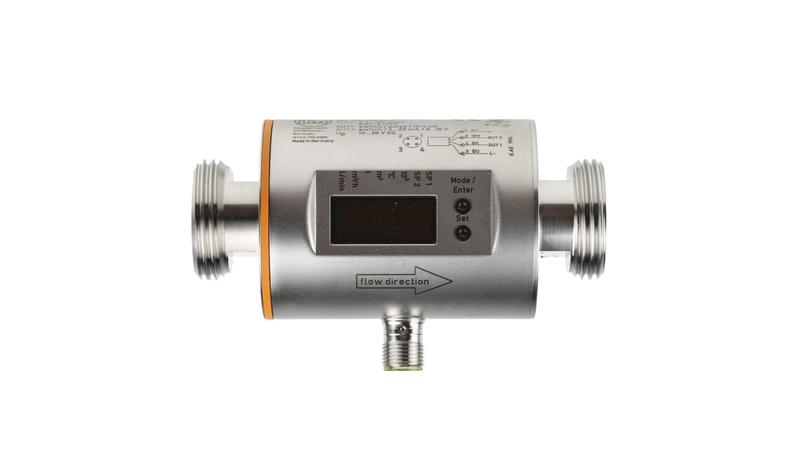

SM8000 ifm electronic SM Series Magnetic-Inductive Flow Meter for Liquid, 0.2 L/min Min, 100 L/min Max

Magnetic-Inductive Volumetric Flow Meters_x000D_ The magnetic-inductive volumetric flow sensors of the SM series monitor liquids. They detect the three process categories volumetric flow quantity, consumed quantity and medium temperature._x000D_ Peak consumption, present consumption or accumulated consumption can be accessed and adjusted via programmed switch and alarm level settings - all at the touch of a button._x000D_ The units feature two switching outputs which can be programmed as normally open or normally closed. For output of the measured value, one switching output can also be configured as a scalable analogue output. For consumed quantity monitoring, the other output transmits counting pulses to the controller._x000D_ In addition to volumetric flow monitoring, the SM also monitors the temperature of the medium. It is displayed on the unit and provided for signal processing. The sensor is thus suited for monitoring cooling circuits._x000D_ The robust stainless steel housing and high protection rating provide high security even in harsh environments._x000D_ Depending on the volumetric flow quantity to be detected, devices with different process connections are offered._x000D_ Features and Benefits_x000D_ • With volumetric flow quantity, total quantity and temperature indication_x000D_ • High accuracy, repeatability and measurement dynamics_x000D_ • For use in conductive media from 20 μS/cm_x000D_ • With switching output, analogue output and pulse output_x000D_ • Clearly visible LED display_x000D_ Product Application Information_x000D_ They are frequently used in cooling circuits, for example, in steelworks, the automotive industry and in glass making. In water management and industrial installations, the sensors are used for water consumption measurement._x000D_ Approvals_x000D_ CE_x000D_
